Arm Gussets

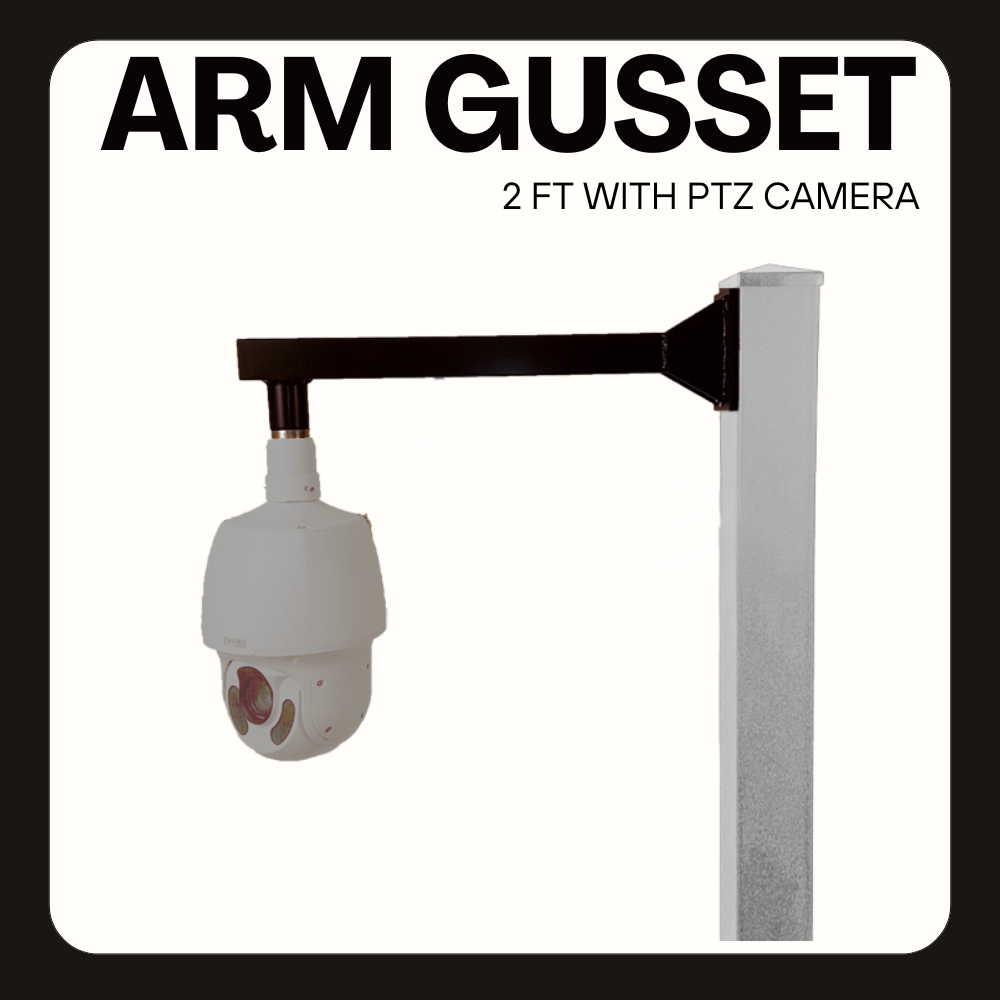

Versatile Mounting Arm for PTZ Cameras

Extend your surveillance reach with this rugged mounting arm gusset, designed to position cameras and attachments 1 to 3 feet away from any pole or wall. Compatible with 4″ Square Poles, SteadyMax Poles with Pedestal Mounts, or direct wall installations, this arm offers flexible deployment across a wide range of setups.

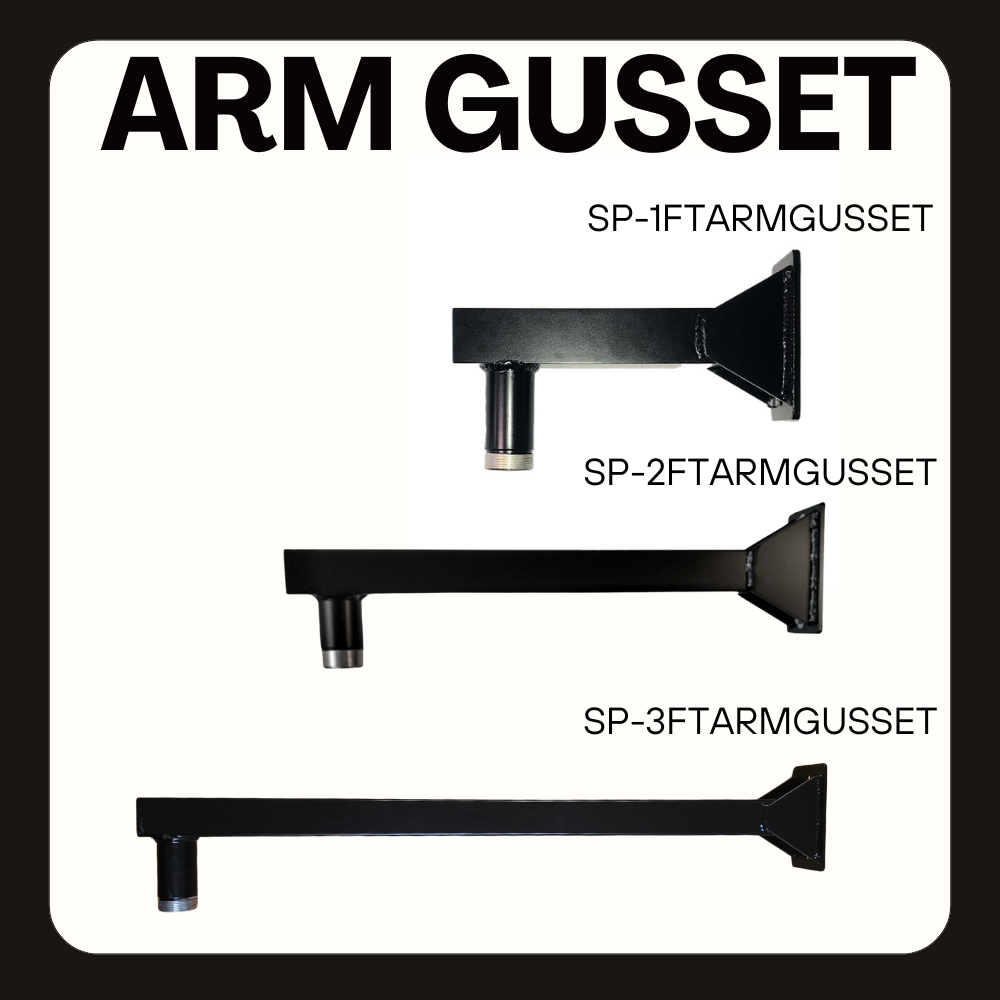

• Dimensions: 12″, 24″, 36″ arm length, constructed from durable 2″ square tubing
• Mounting Interface: 4″ long 1-1/2″ NPT pipe, supports any PTZ, camera, or accessory with standard NPT threading
• Installation Options: Pole-mounted or wall-mounted configurations
• Stability: Engineered for high-load support and vibration resistance in demanding environments

Ideal for commercial, industrial, or perimeter surveillance applications where offset mounting improves field of view and accessibility.

Download

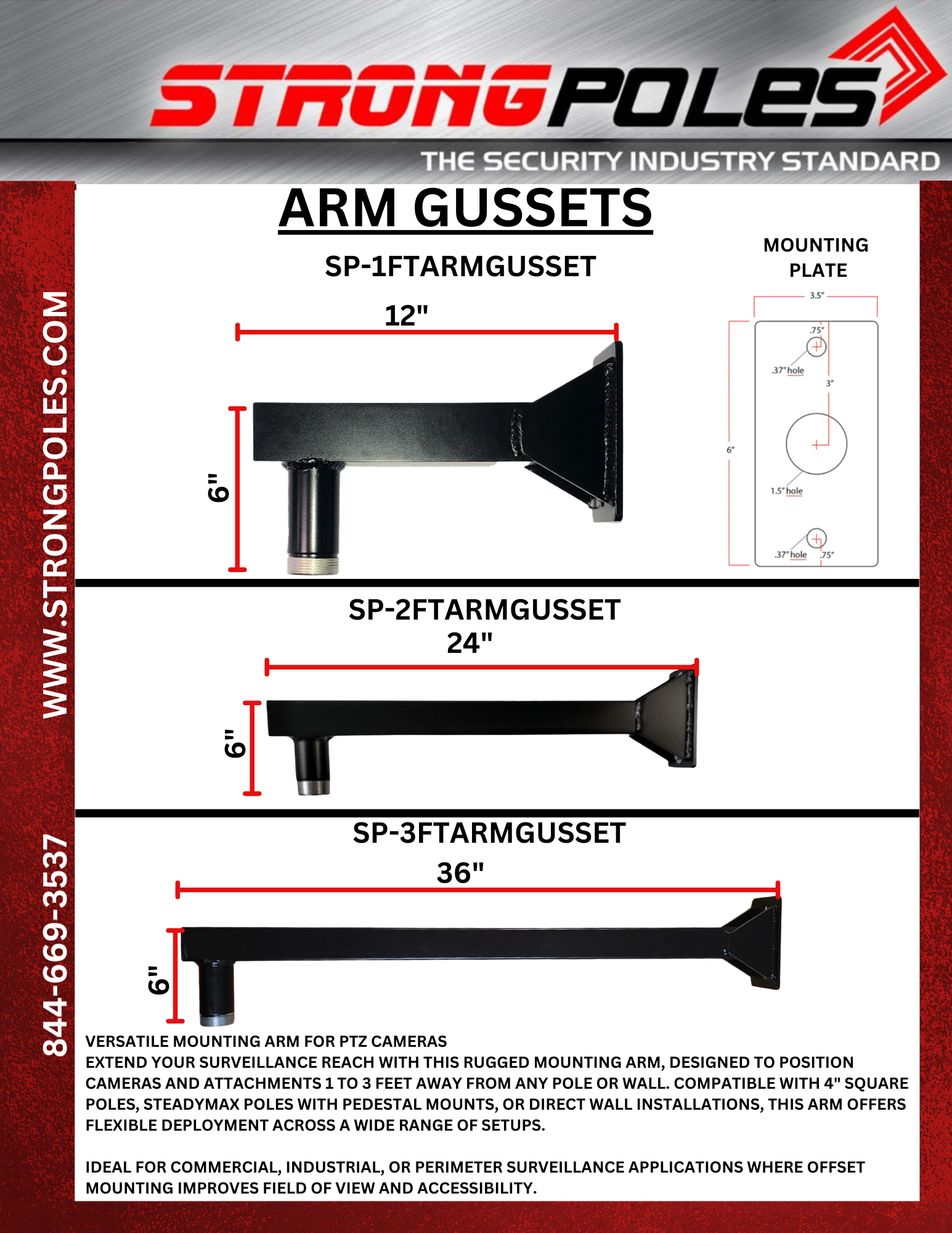

Arm Gusset PDF
