CamBlox – Security Camera Mount
No Drill Solutions for Mounting Cameras on Existing Infrastructure
“Drill into our Cam Blox, and not your Clients’ Facility”
These CamBlox Mounting Platforms will provide everything you need to mount cameras indoors in most Tiltwall and Big Box structures. In most cases, in under a minute you can have a complete Camera Mounting Platform that has a built-in Junction Box.
As you may know, it is dicey, and many times not permitted to drill holes in concrete tiltwall structures, or to drill into the beams at the ceiling. So we have made it much easier to quickly mount single or multiple small cameras on our innovative Cam Blox.
You can choose a Beam Clamp type, a Pipe or Conduit Clamp, or even a Pipe Drop model that can be connected directly to Pipe Drops or onto a Pipe Drop Accessory (see pics).
The Cam Blox boxes not only provide a quick way to mount any cameras, but the aluminum boxes are thin enough to make drilling mounting and access holes super quick.
The Cam Blox boxes can also be used as a handy Junction Box for wiring, and can also house extenders, injectors or other devices. The End Caps that are included, are easy to put on or take off.
Now Available in 3 different sizes to accommodate a single Dome, Panoramic or Bullet style camera, or in larger widths to accommodate multiple cameras. (In Black or White colors)

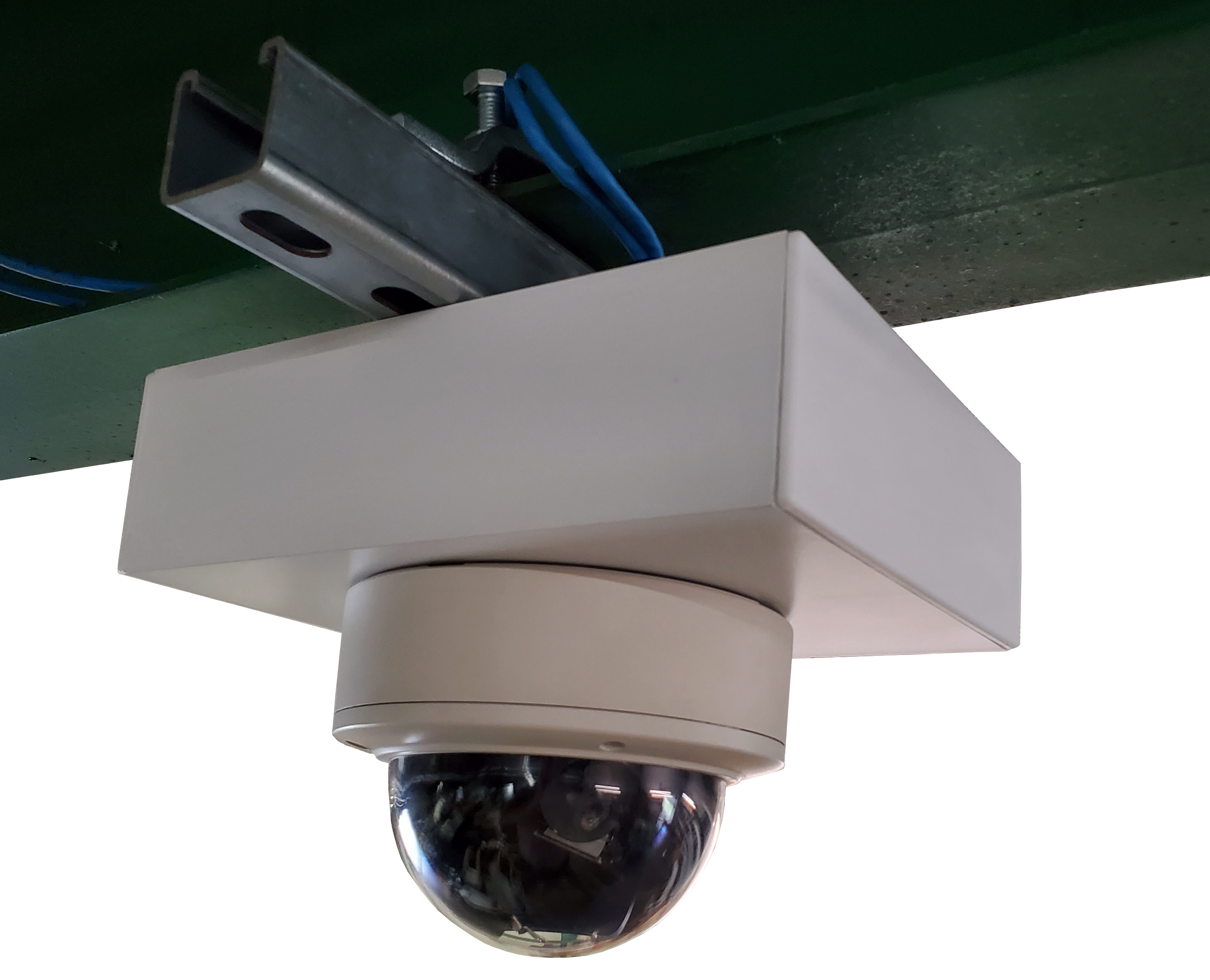

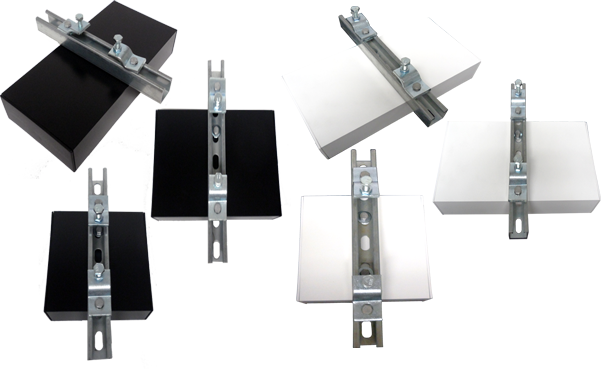

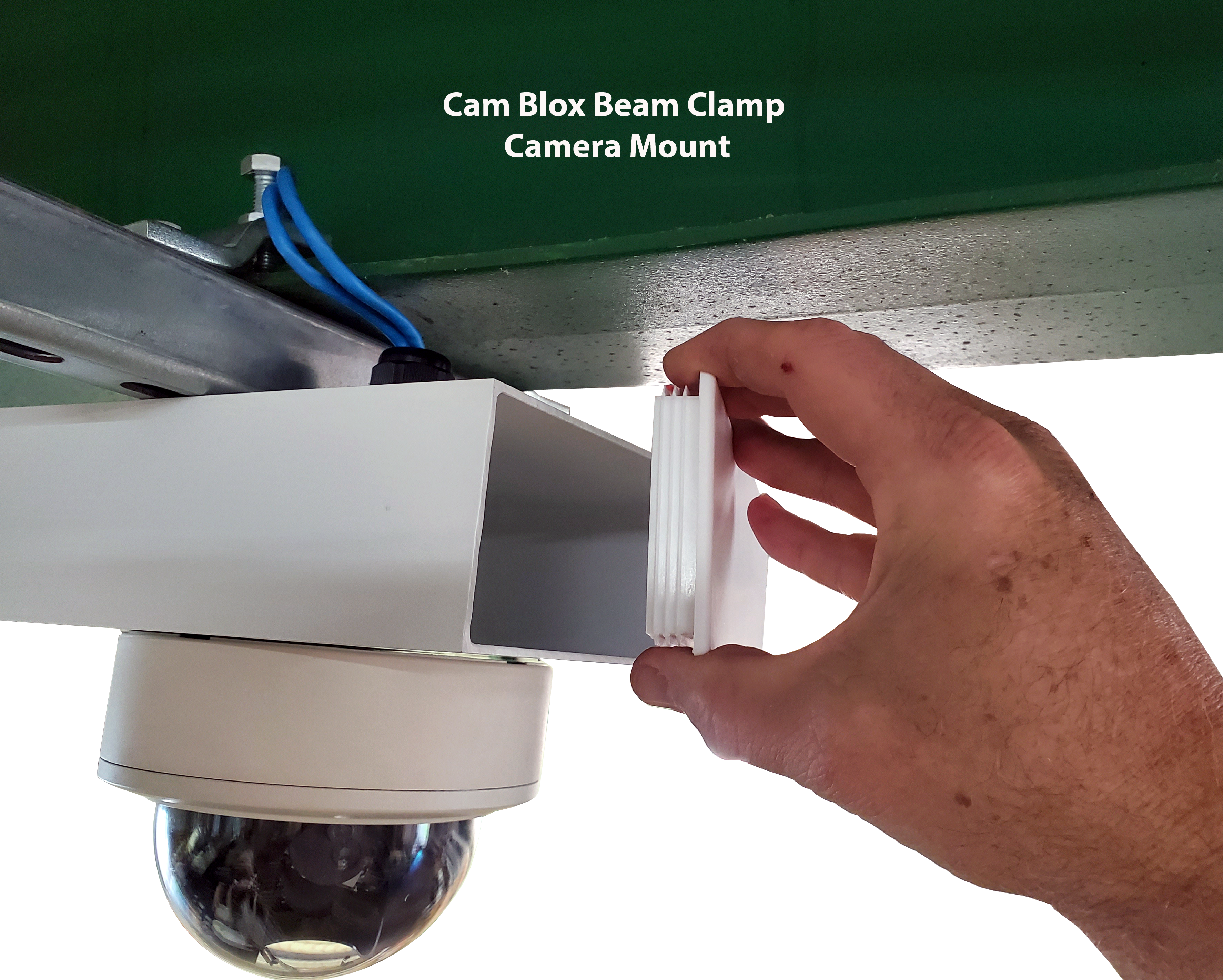

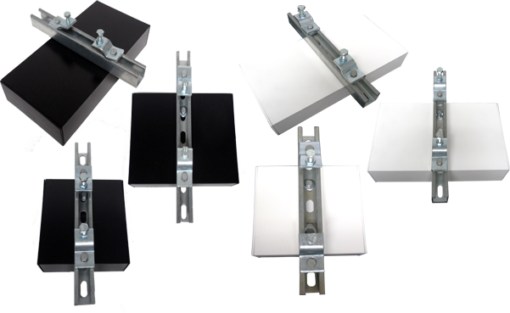

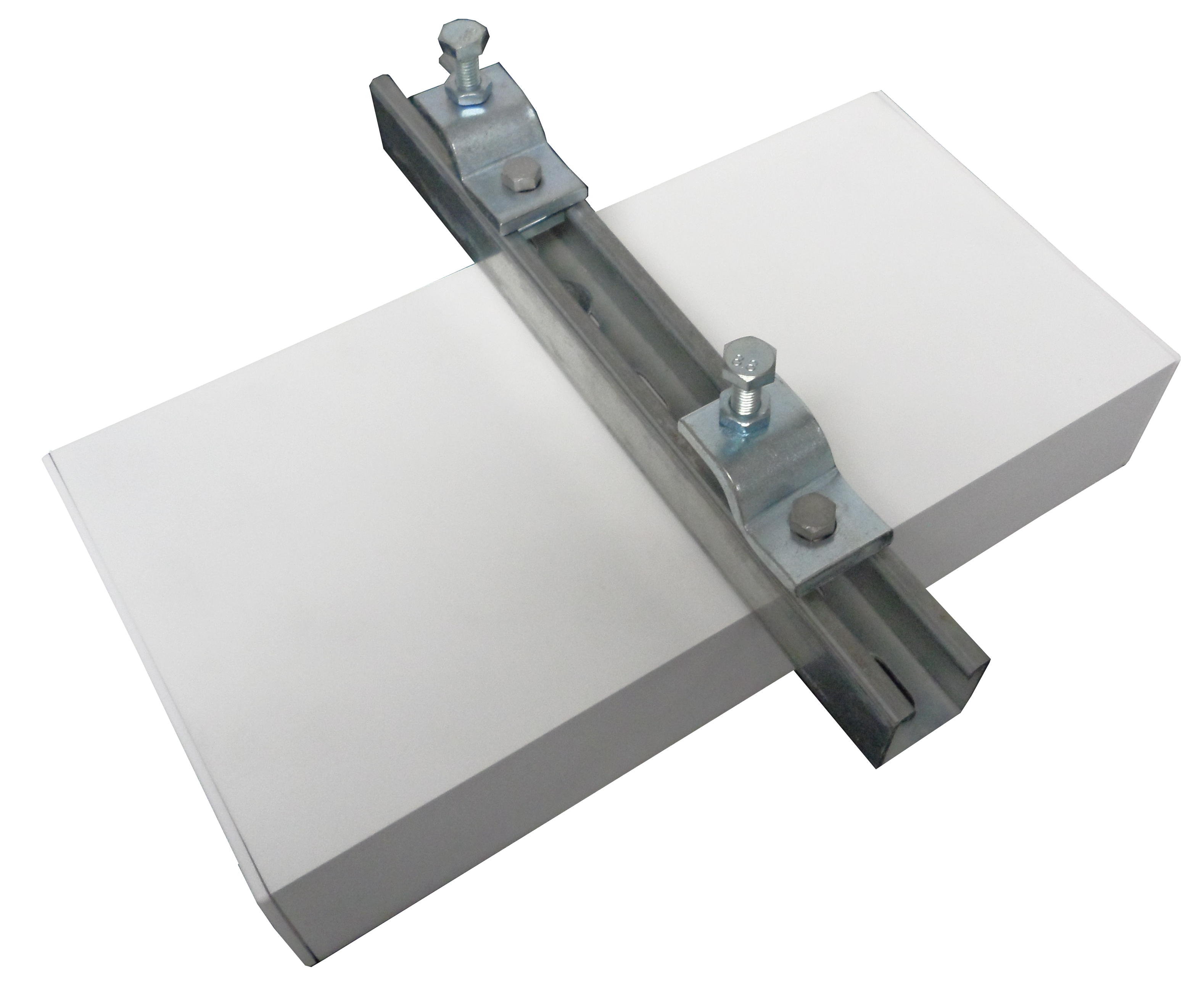

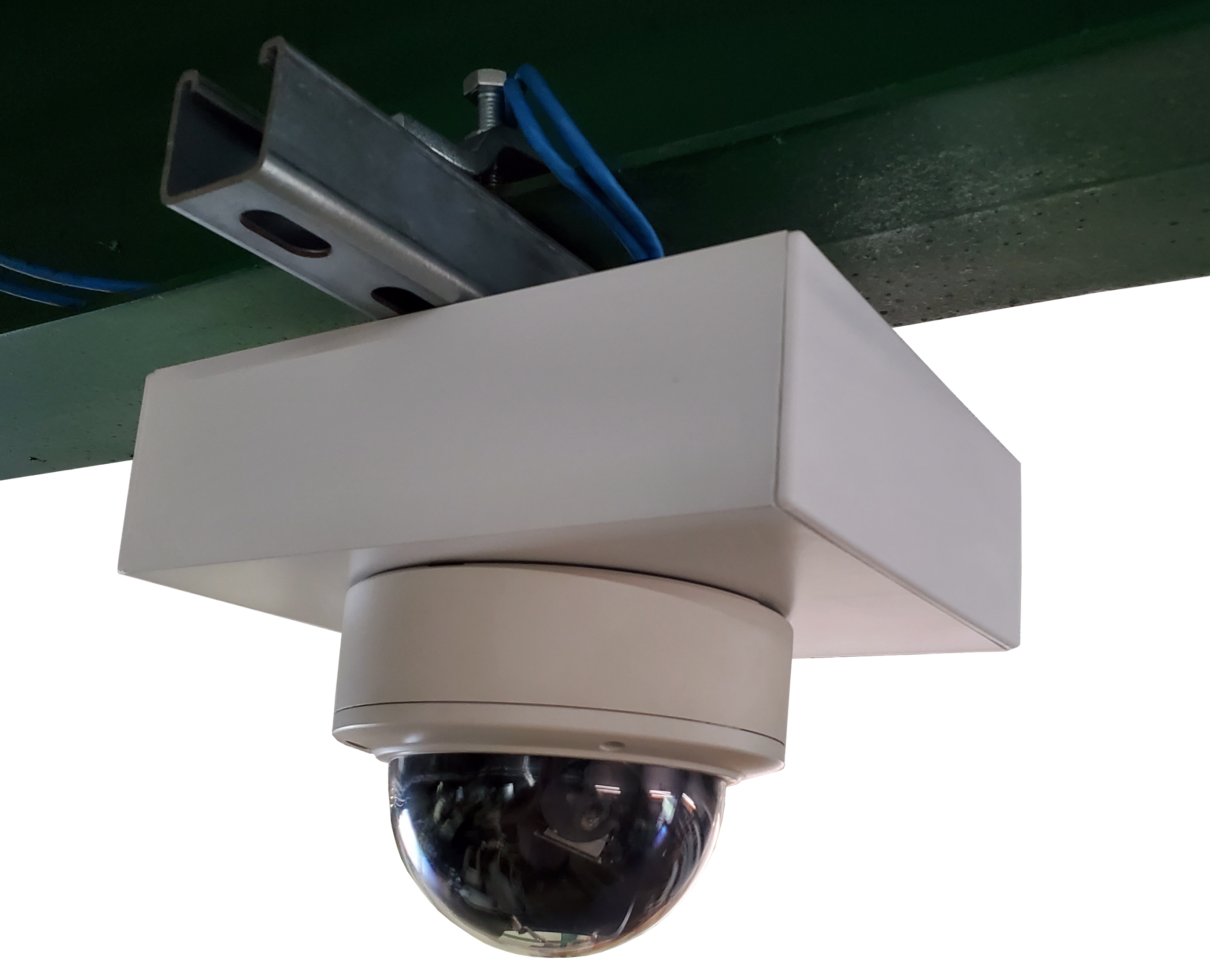

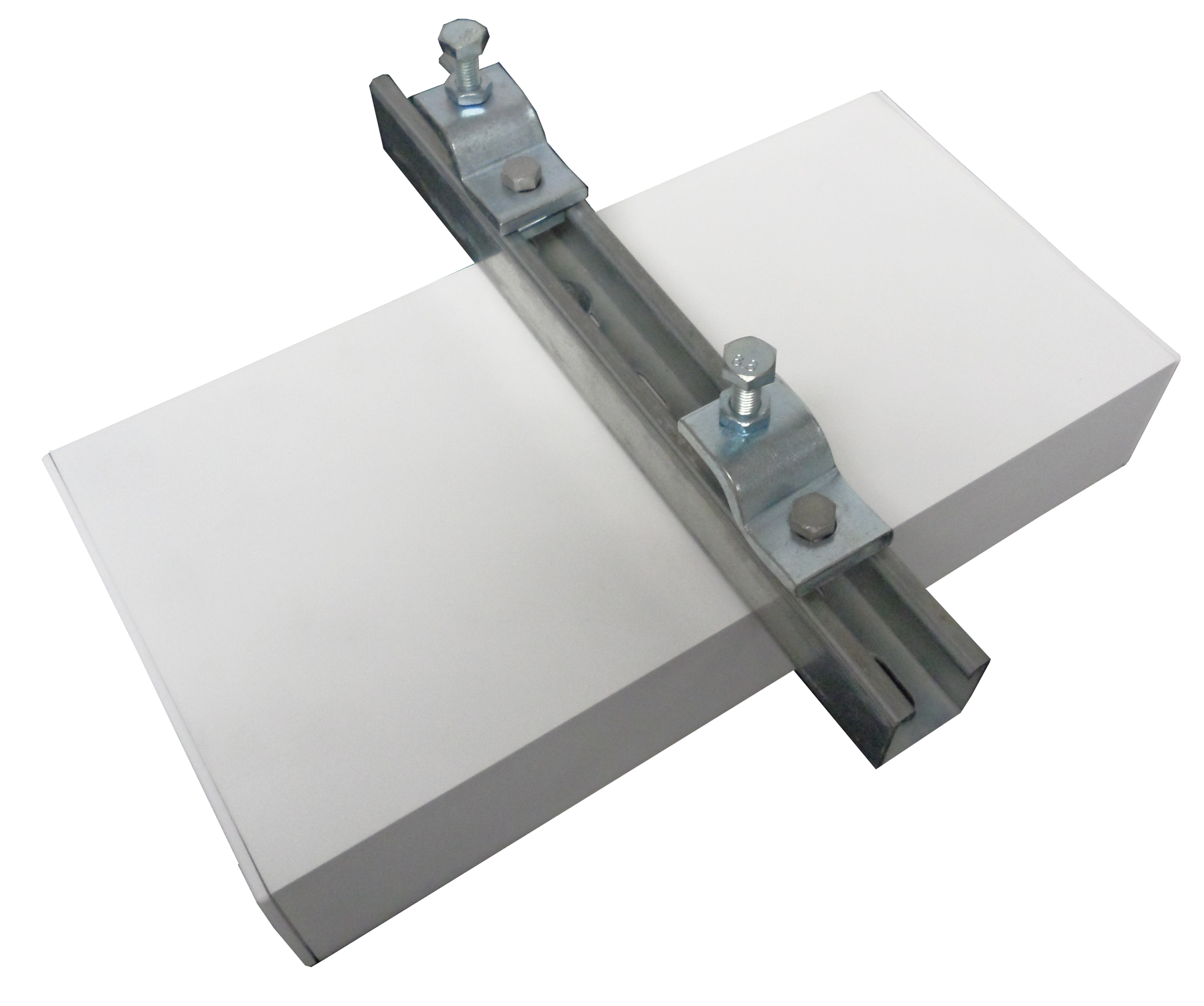

Beam Clamp type: This quick-attach attachment will make mounting any Cam Blox to any existing beam fast and easy. These Beam Clamps use a 14” long section of Strong Strut, and come complete with 2 Beam clamps that can accommodate any Beam up to 11’ wide.

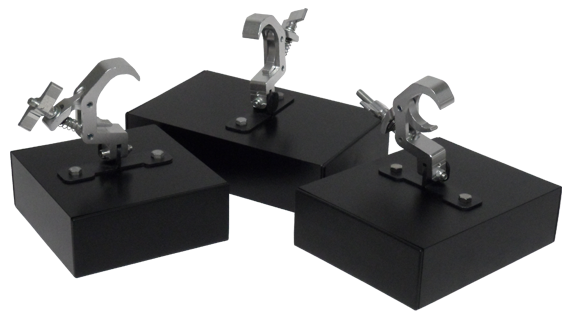

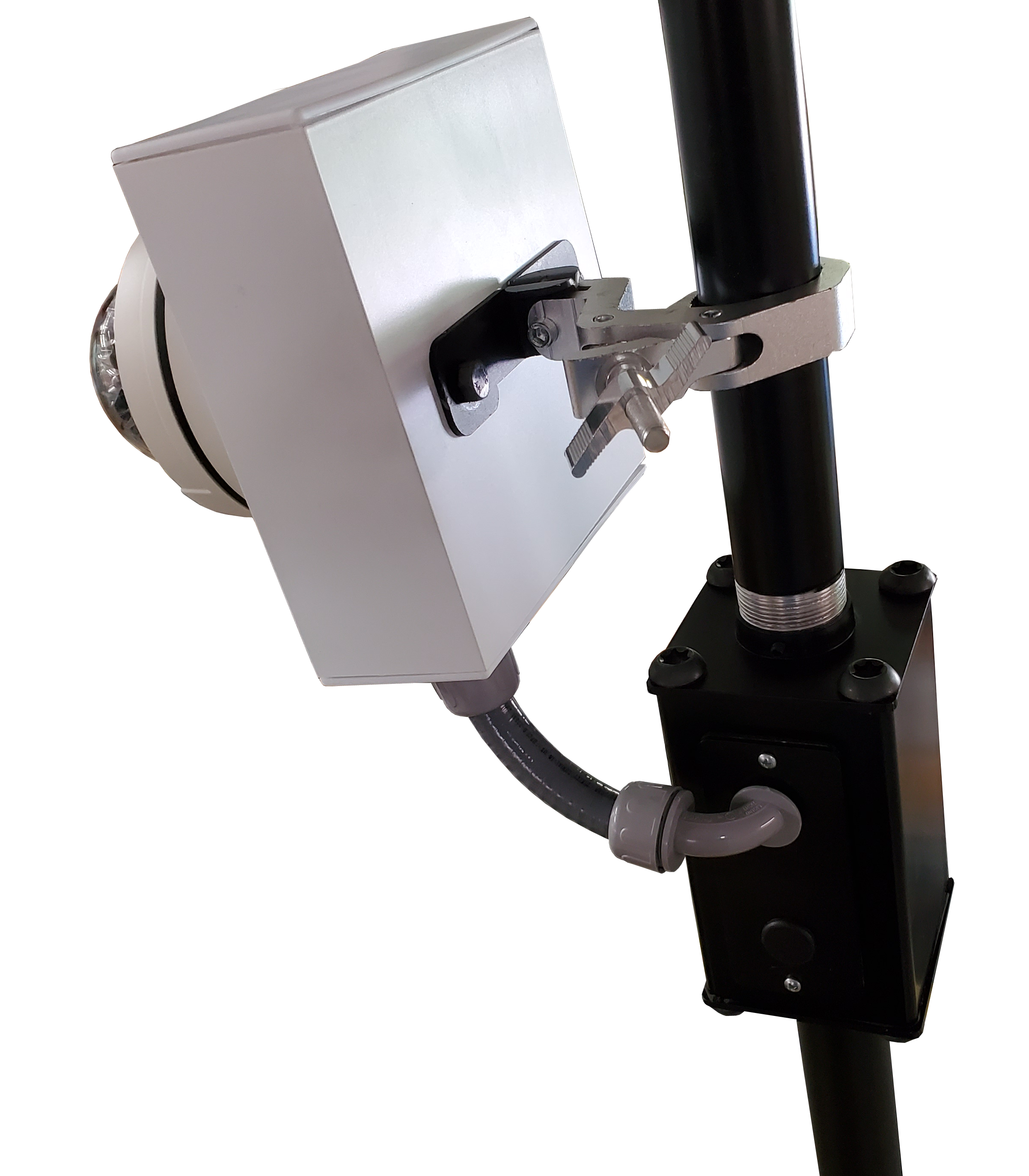

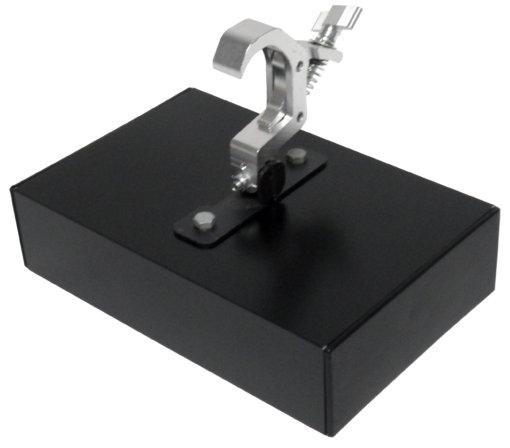

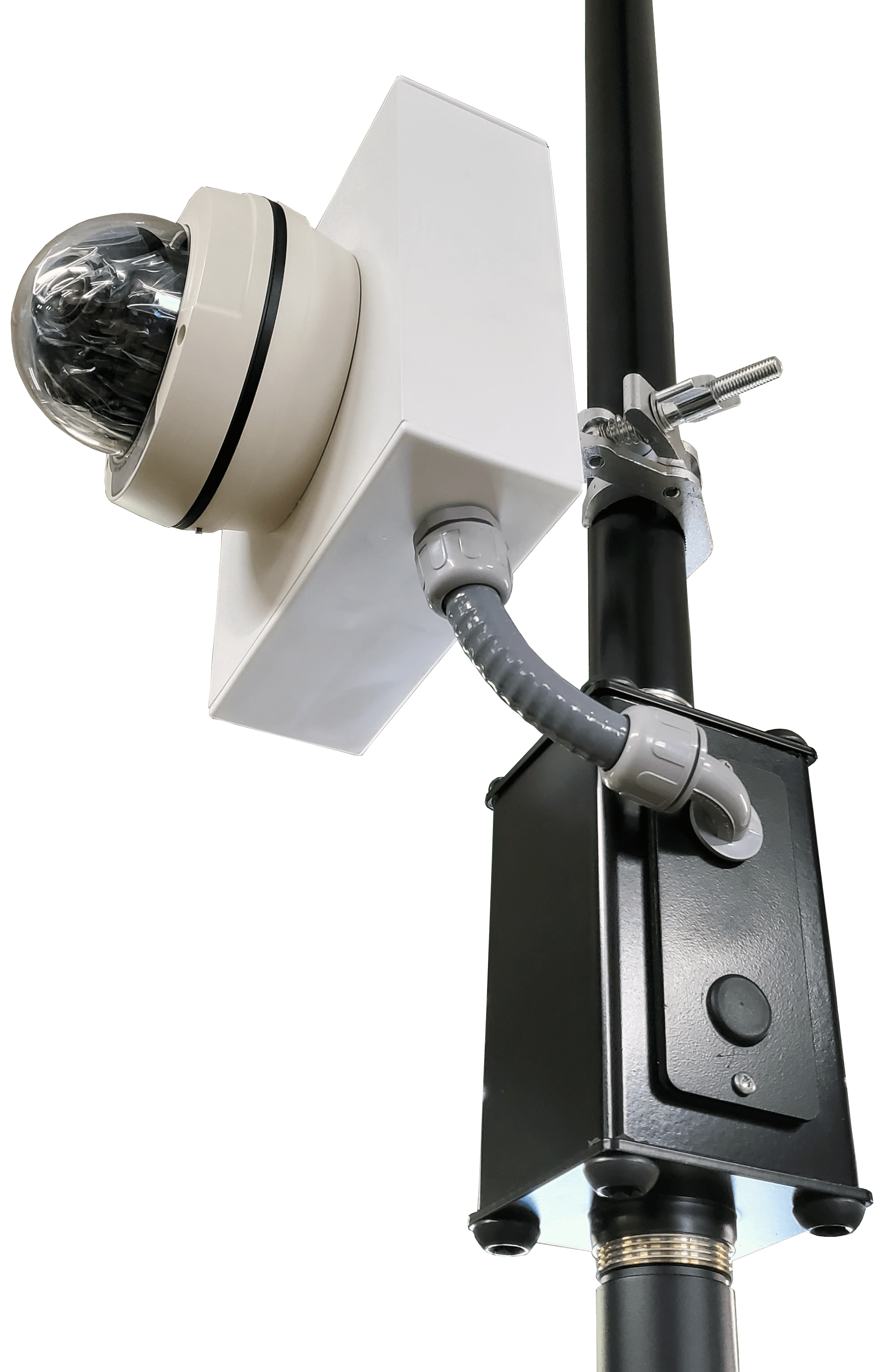

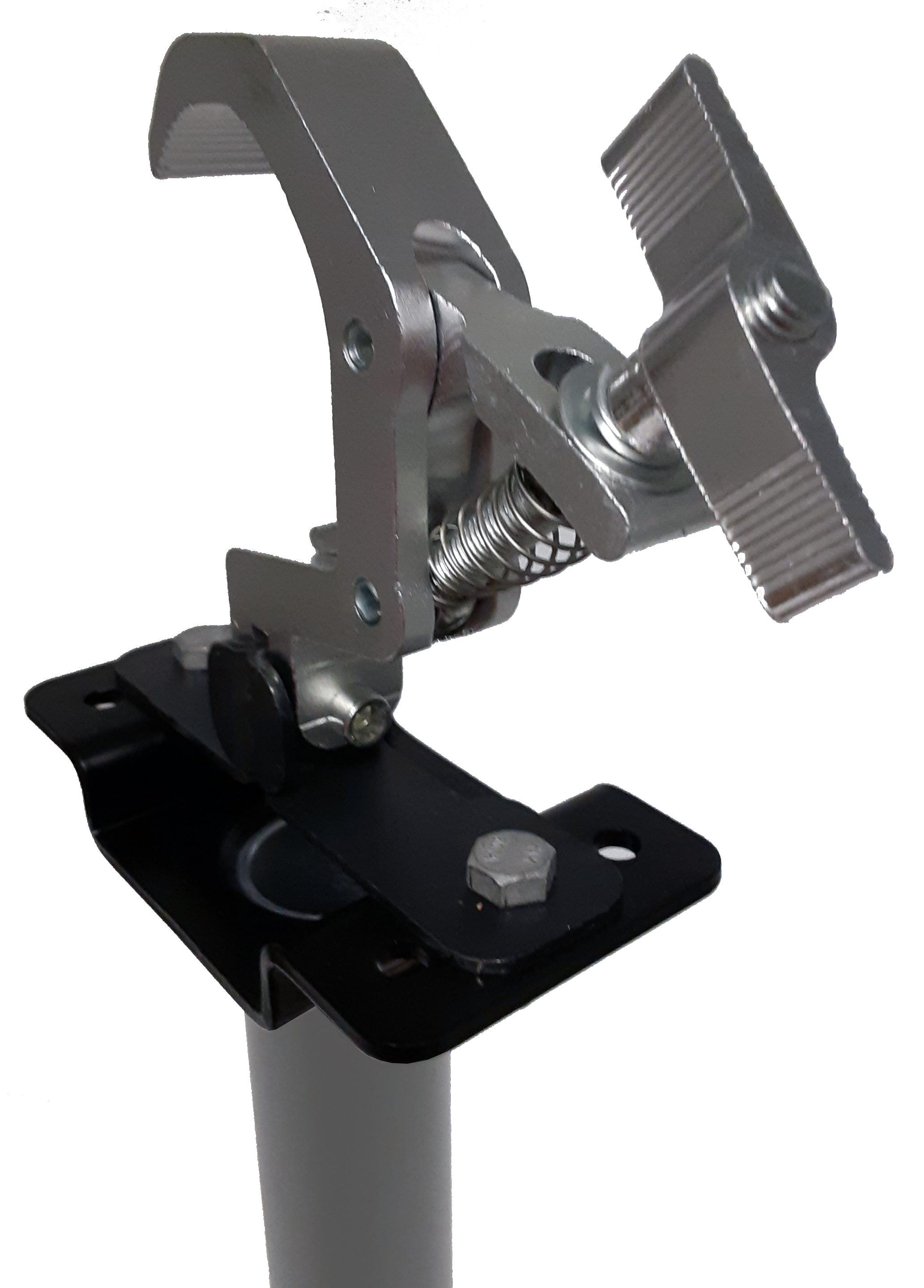

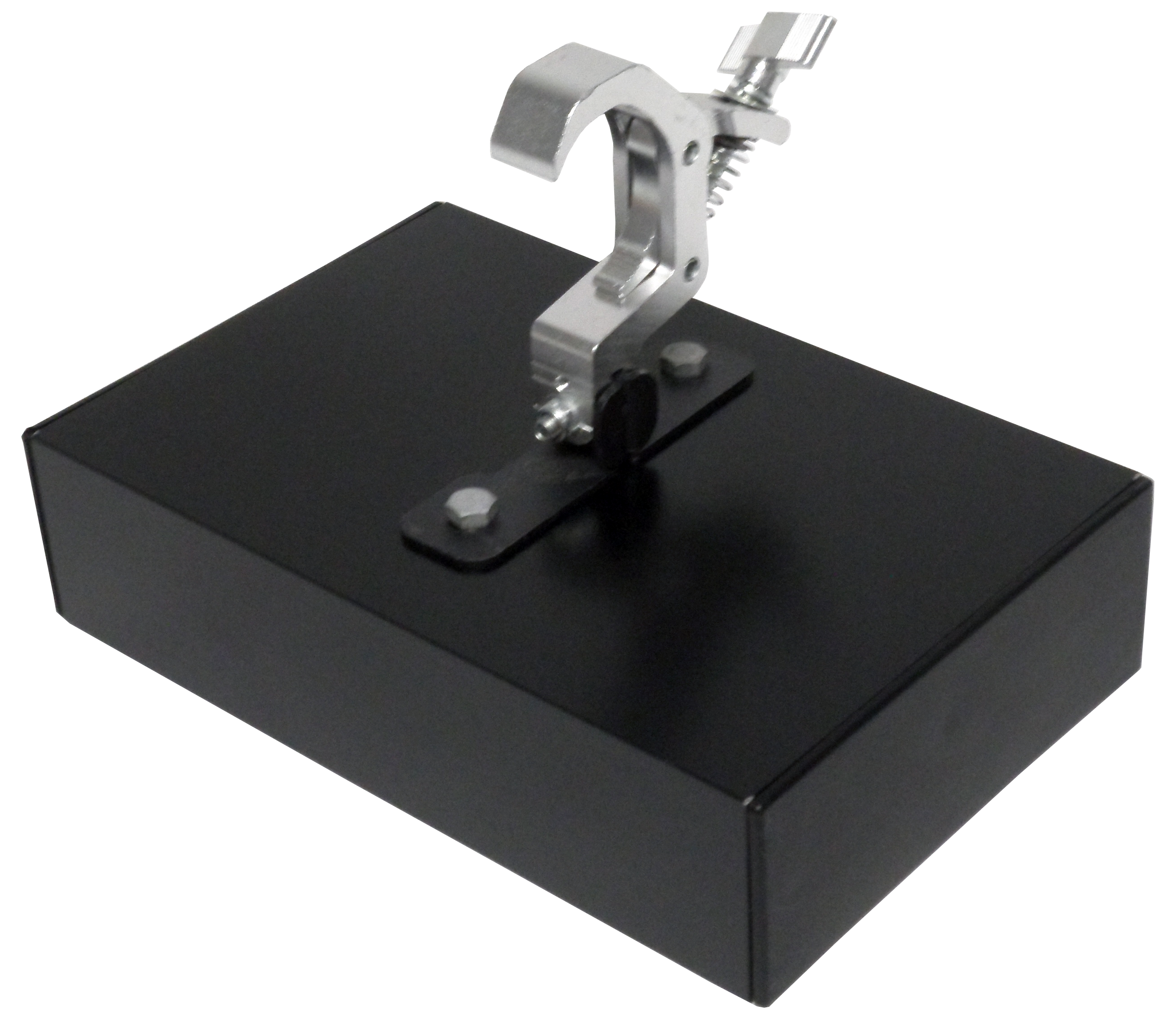

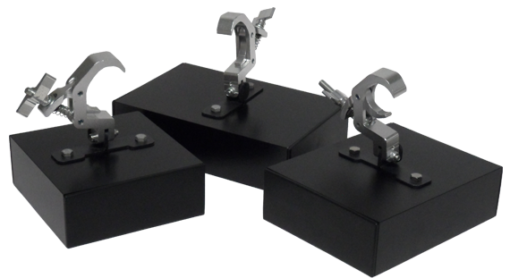

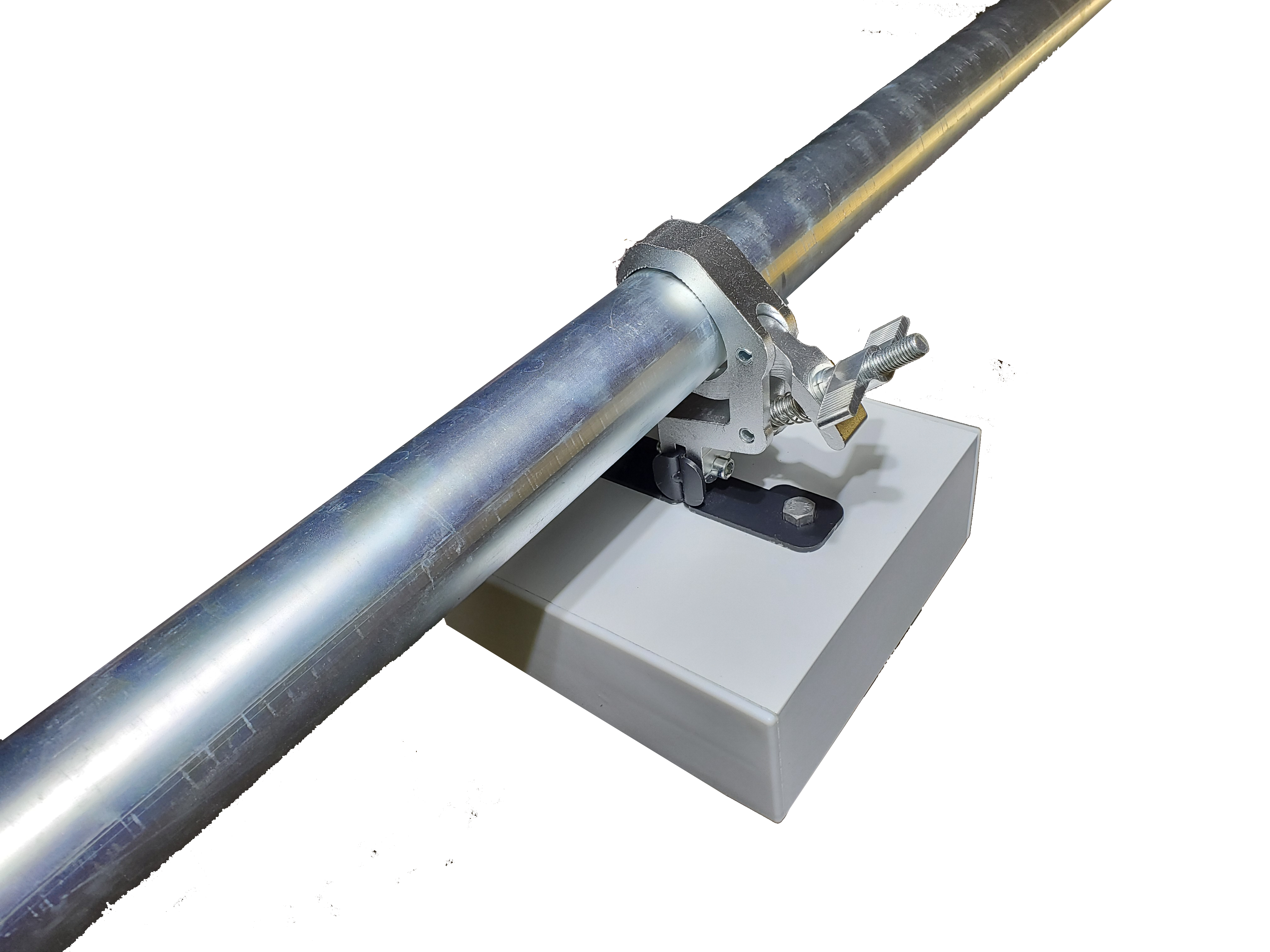

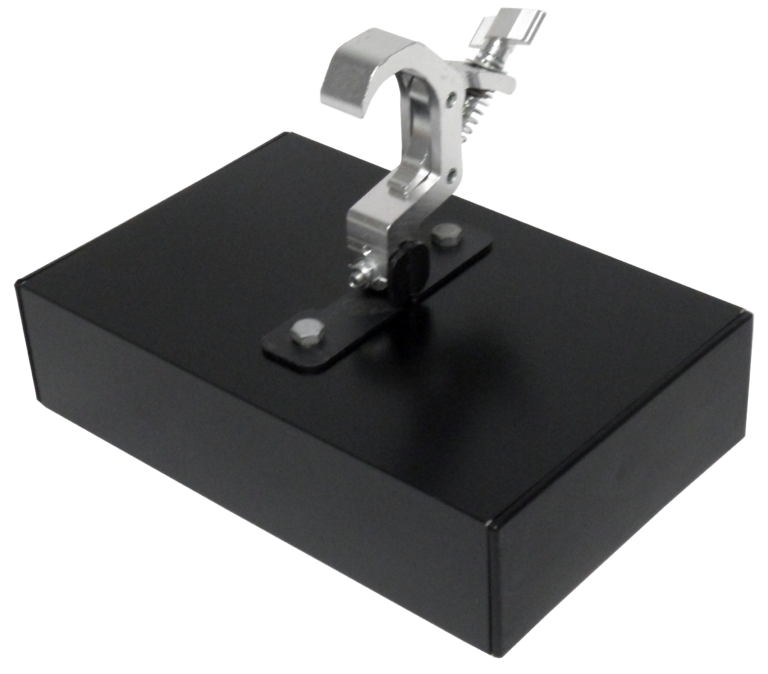

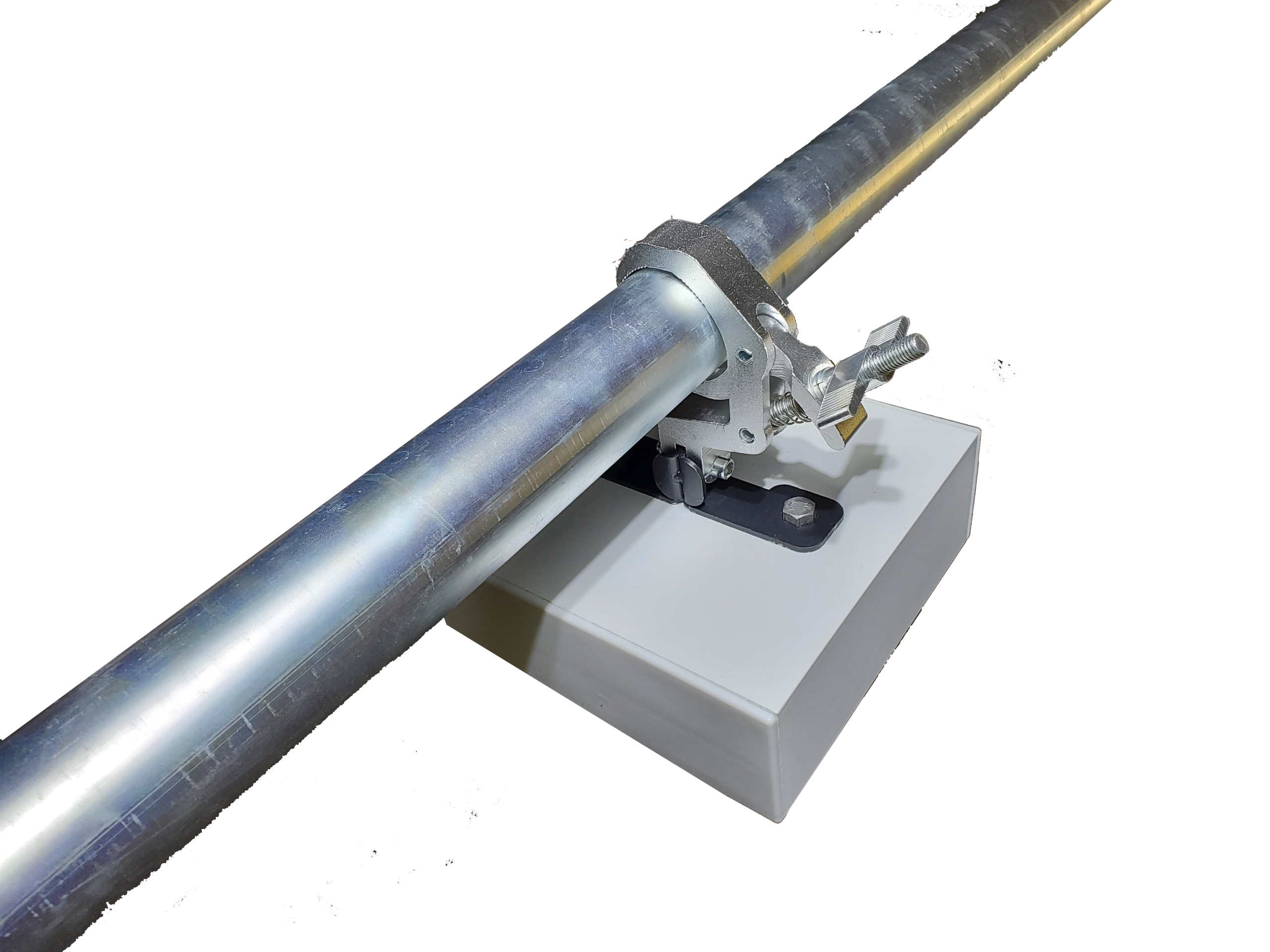

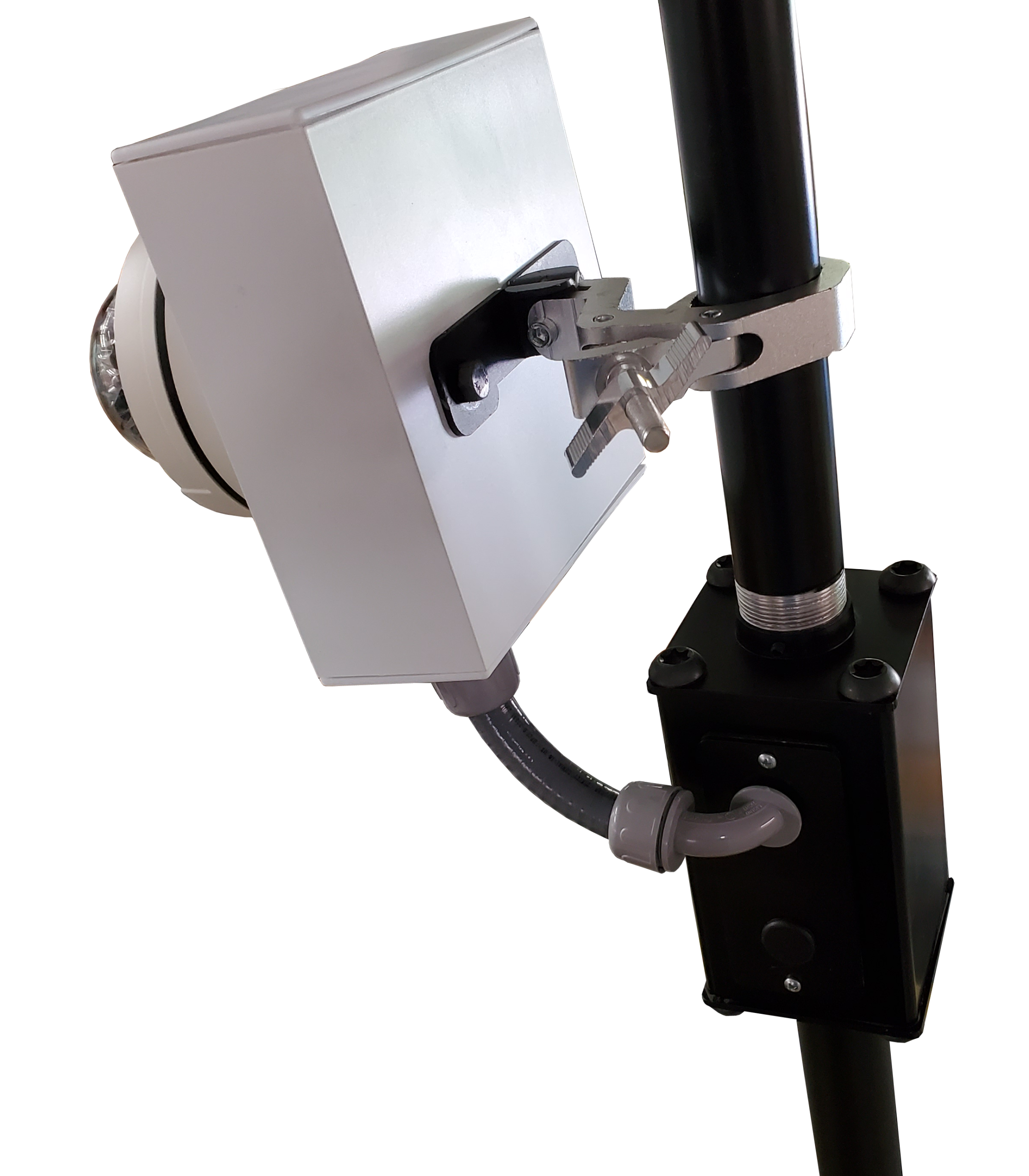

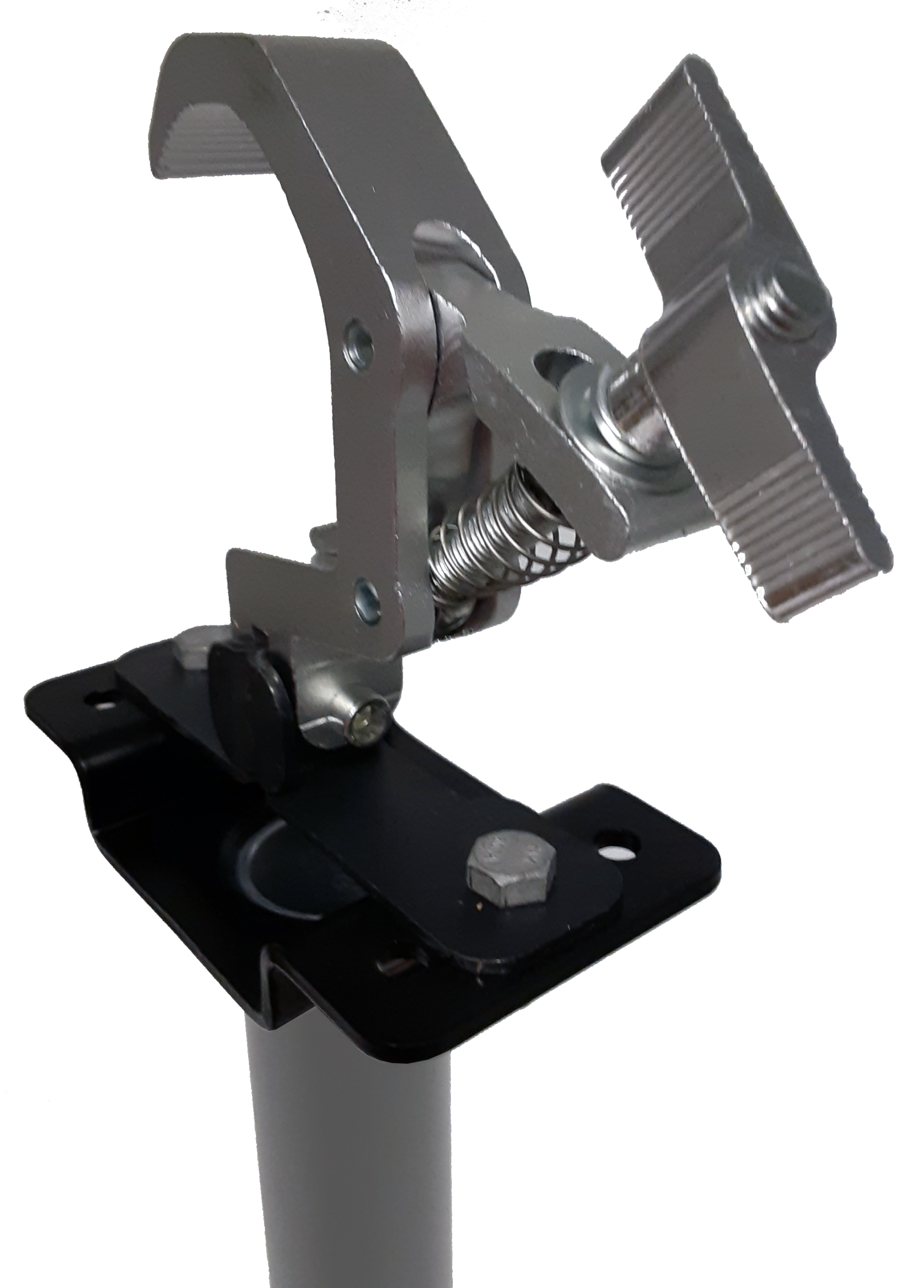

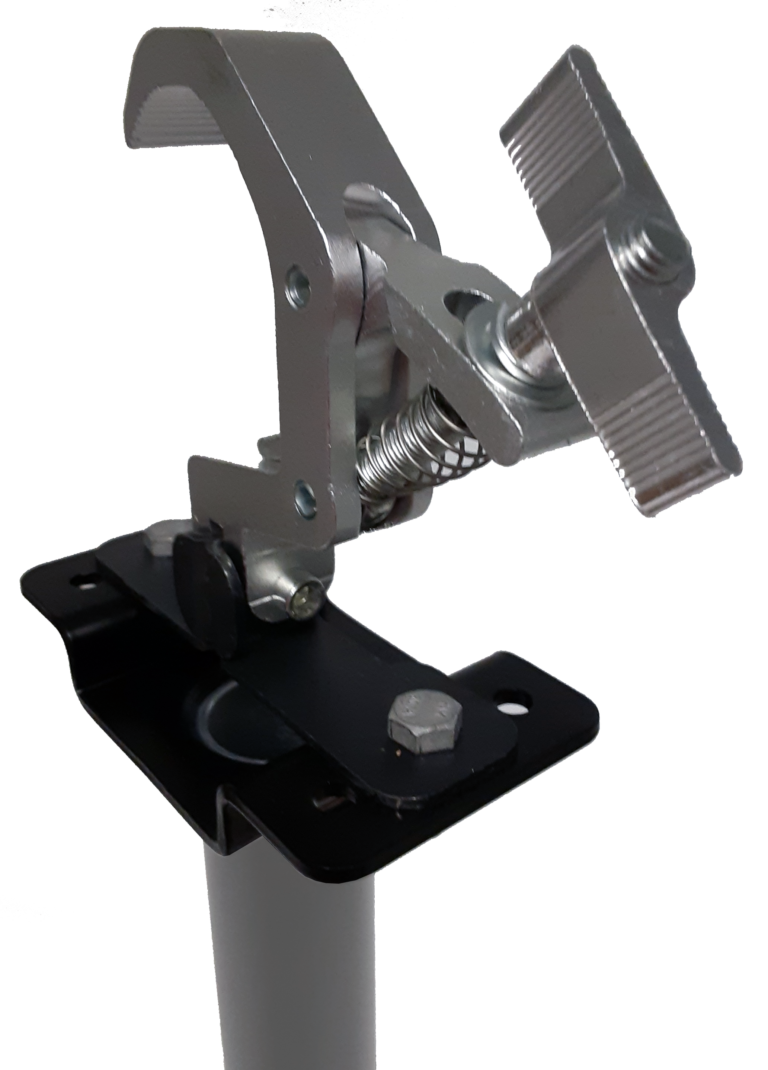

Pipe or Conduit Clamp type: These innovative Clamps allow you to utilize any pipe or conduit in the facility (including anywhere along our own Pipe Drop Sections), to quickly attach a Cam Blox and you will instantly have a Camera Mounting Platform ready to use. These Pipe Clamps will attach to any pipe or conduit that is between 1-1/2” and 2-1/2” outside diameter (OD).

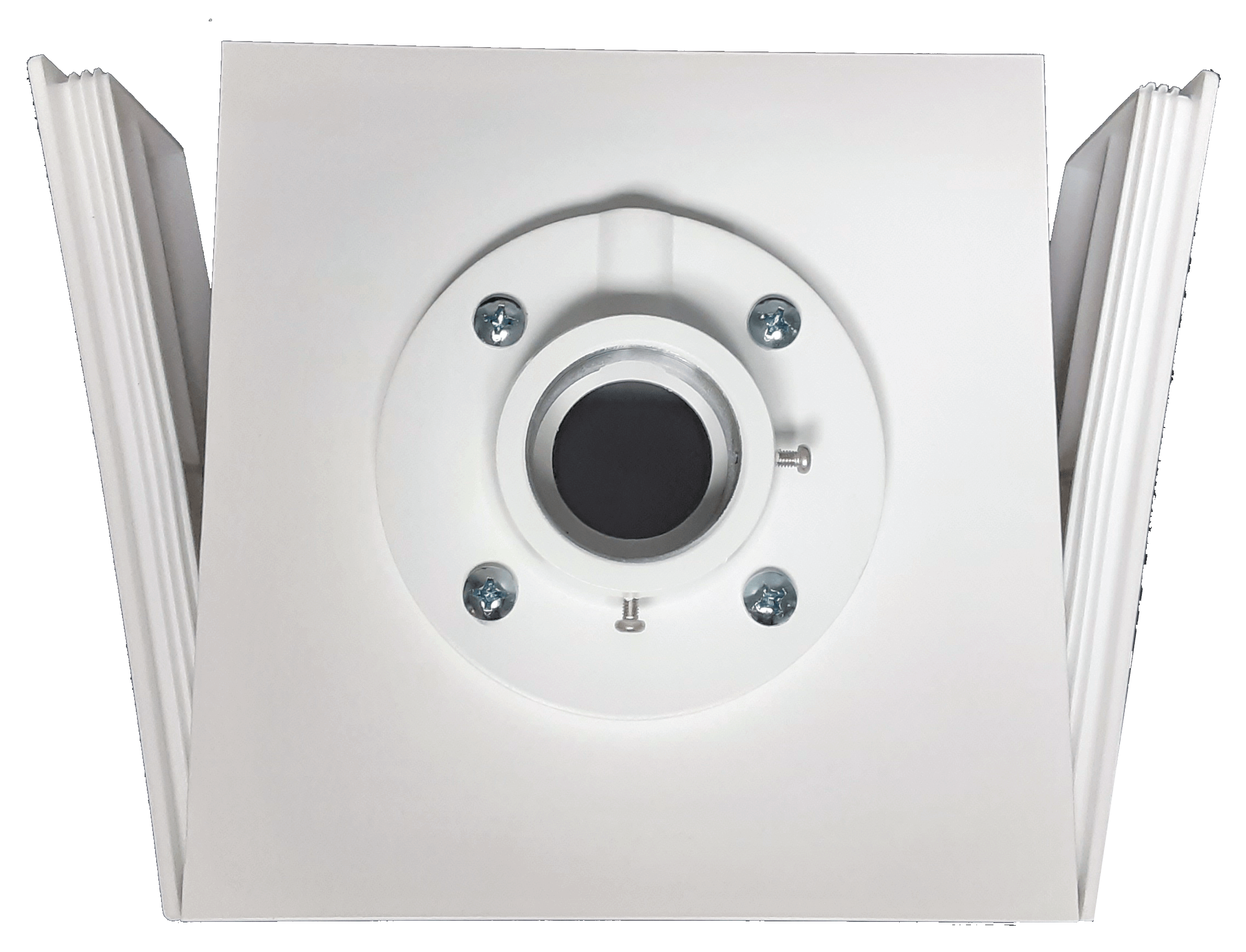

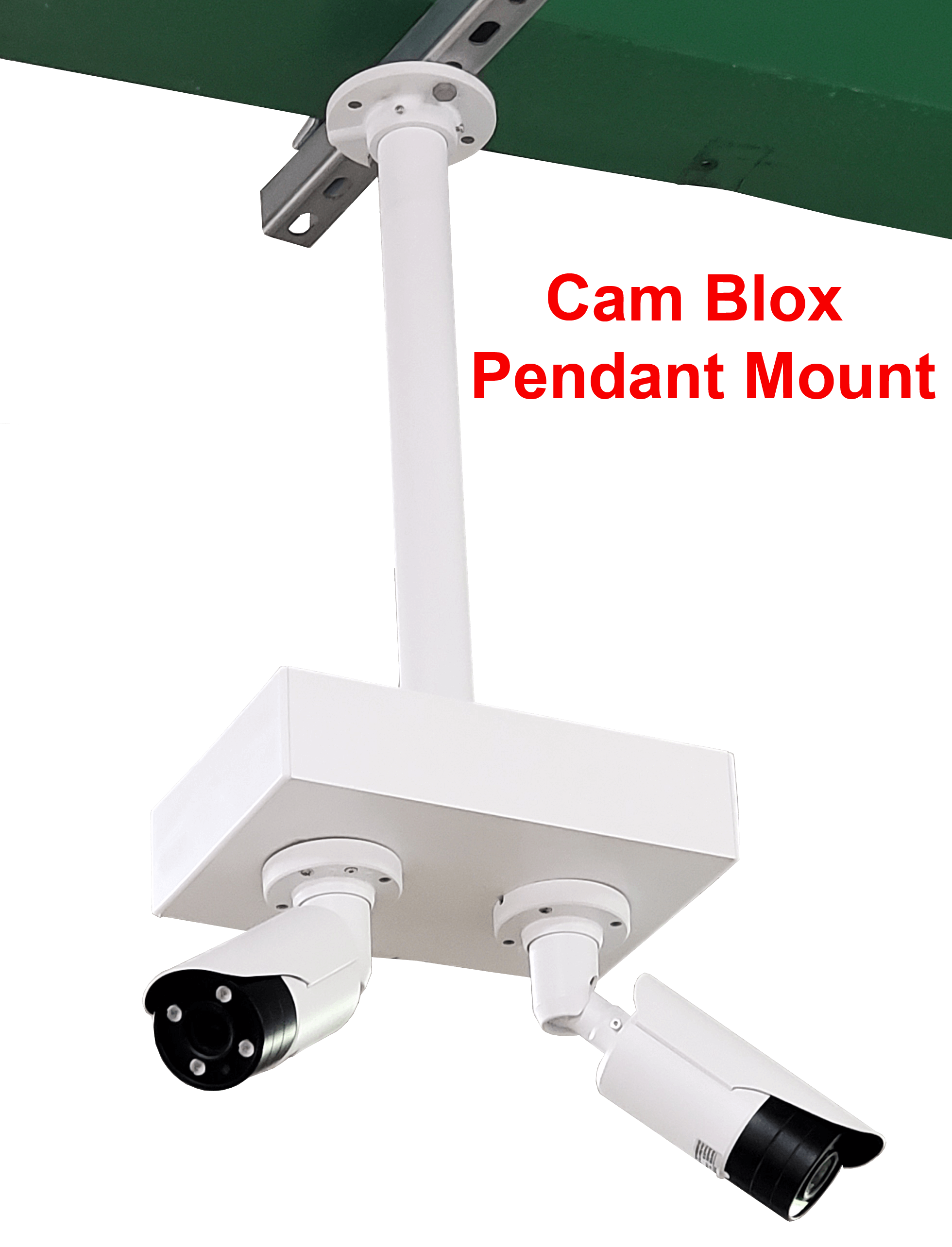

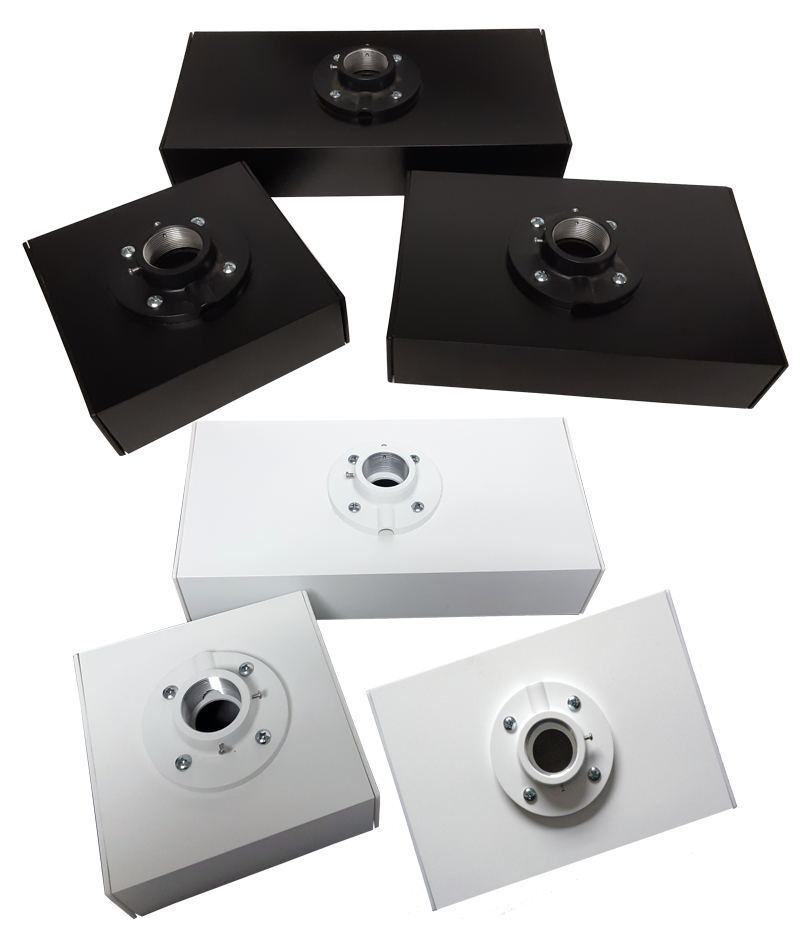

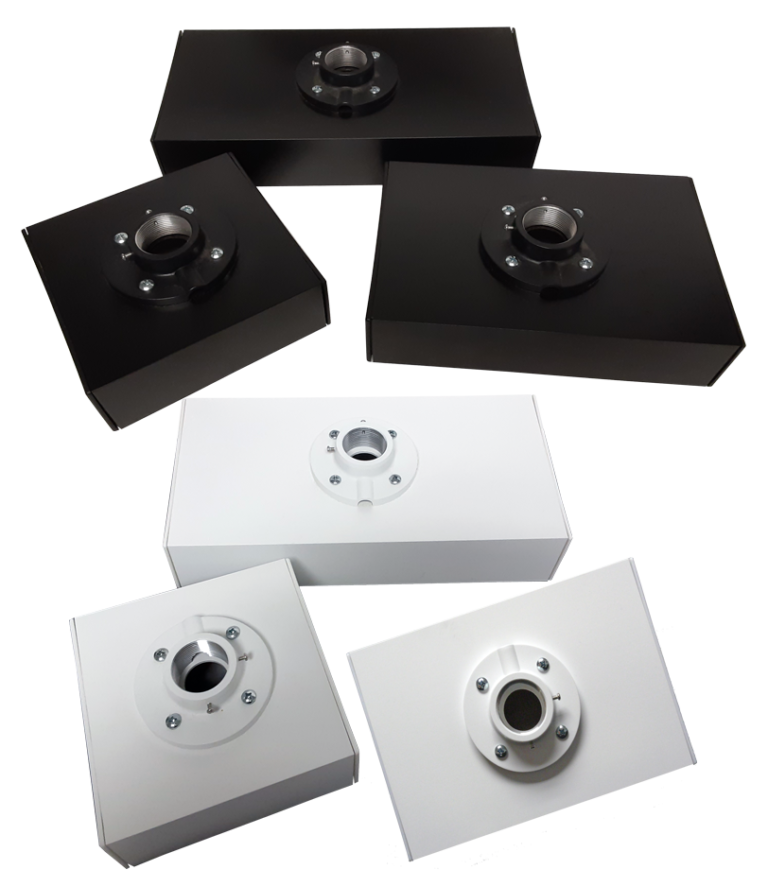

Pendant Mount type: This type of mount attaches to any of our 1-1/2” Pipe Sections, or onto any 1-1/2” threaded accessory, and has twin set screws to keep the box oriented correctly and tightly. (cannot be used“inline” of Pipe Drop Sections. Must be used alone, at the end of a Pipe Drop, or attached to an accessory)
All Mount Styles are available in these sizes: (in Black or White)
Single Wide width (8x8x3 inches)
Double Wide width (8x12x3 inches)
Triple Wide width (8x16x3 inches)
