$260.00 $260.00

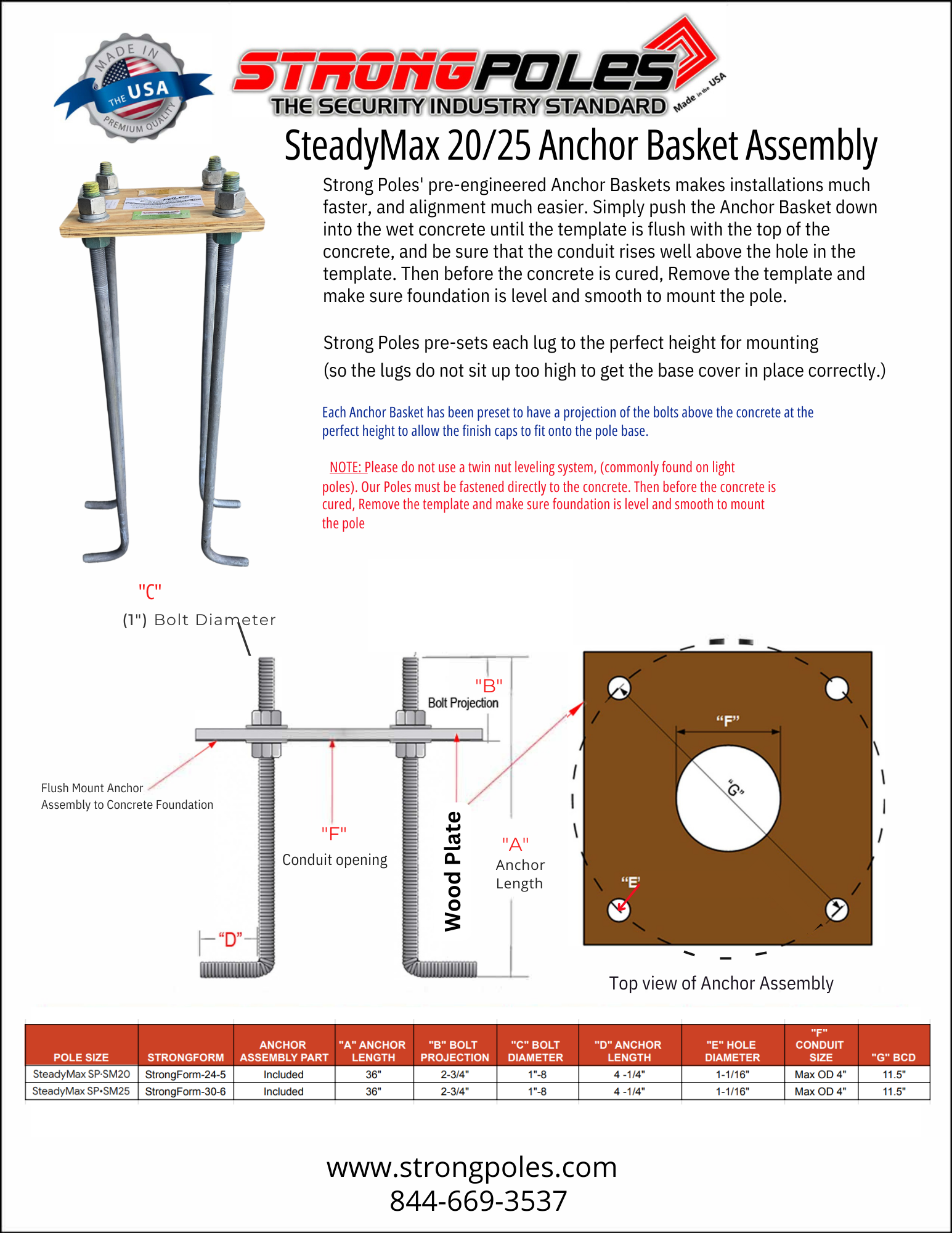

SteadyMax Anchor basket for 20′ and 25′ straight poles
Our Anchor Baskets make installation much faster, and alignment much easier. Simply push the Anchor Basket down into the wet concrete until the template is flush with the top of the concrete, and be sure that the conduit rises well above the hole in the template. Then, after the concrete has cured, remove the template and you are ready to mount the pole. Each Anchor Basket has been preset to have a projection of the bolts above the concrete at the perfect height to allow the finish caps to fit onto the pole base.
NOTE:
Please do not use a twin nut leveling system, (commonly found on lightpoles). Our Poles must be fasten directly to the concrete. Then before the concrete is cured, remove the template and make sure foundation is level and smooth to mount the pole.
After sinking the Anchor Basket into the concrete flush with the wooden template, be sure to remove the template after the concrete is cured and BEFORE mounting the pole.
| Weight | 50 lbs |
|---|---|
| Dimensions | 40 × 12 × 12 in |
