Avaiable in the two models below

Platform Mounted to the 8 x 10 Mounting Platform
Part # SP-RRMountBH
works with the SteadyMax or 4″ Square Poles



Platform Mounted to the SteadyMax Wrap
Part # SP-RRMountWrap
works with the SteadyMax Poles only

Available in Dark Bronze or White

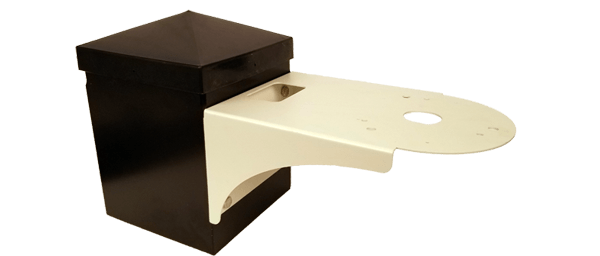

birdhouse platform - Top Mount PTZ Camera Platform

SP-RRMountBH

PTZ Platform Mounted to tthe 8 x 10 Mounting Platform

platform wrap - Top Mount PTZ Camera Platform

SP-RRMountWrap

PTZ Platform Mounted to the SteadyMax Wrap

Top Mount PTZ Platform

This Heavy Duty PTZ Mount is made for any Top Mount PTZ Camera, that allows wall or side mounting of the PTZ in combination with other cameras and/or devices at the top of the pole, or even at any position lower on the pole.

This mount is to be used in conjunction with either the 8 x 10 Mounting Platform (Birdhouse), if it is at the top of the pole, or the Wrap-around Platform if it is to be lower on a SteadyMax pole.

Weight limit:  50 lbs.

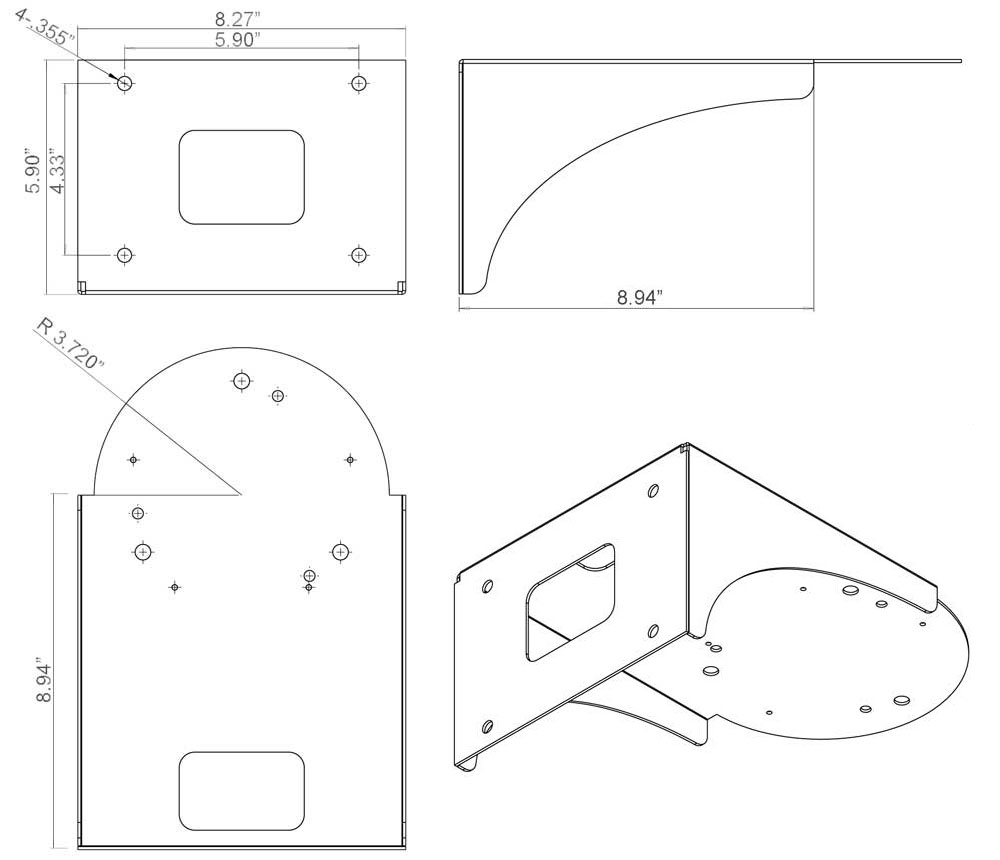

surface mount line drawing - Top Mount PTZ Camera Platform

Click any image to enlarge

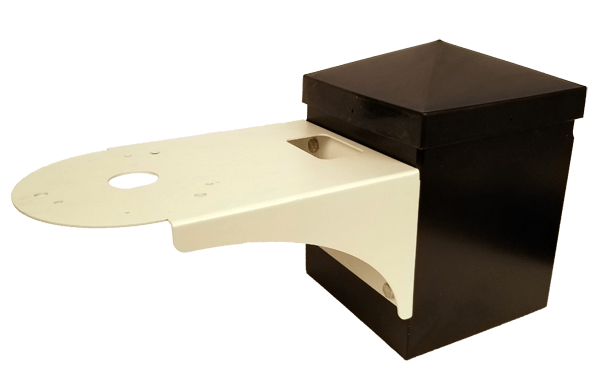

ptz top mount birdhouse - Top Mount PTZ Camera Platform

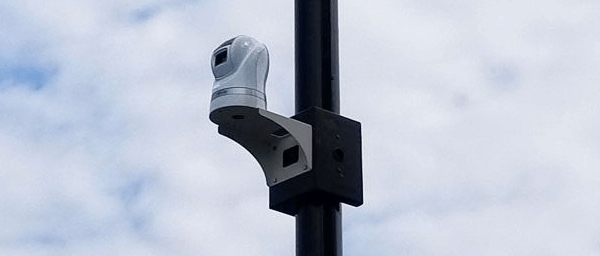

top mount ptz platform with smwrap 687x800 - Top Mount PTZ Camera Platform

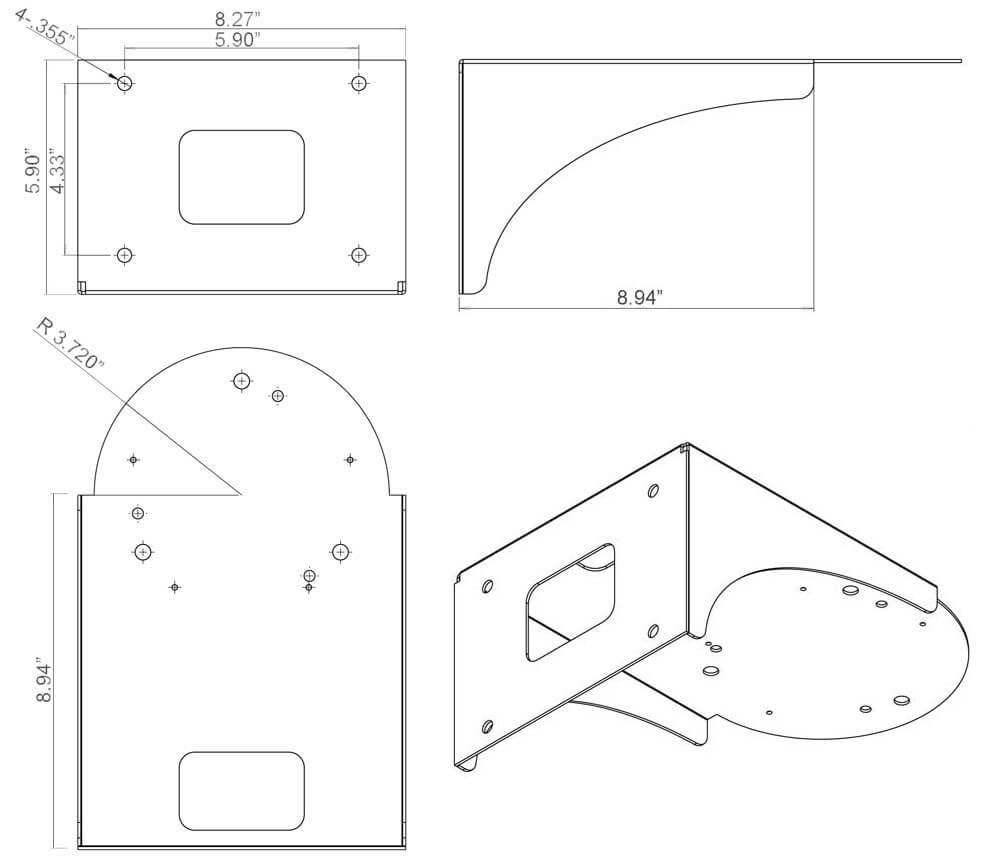

surface mount line drawing 930x800 - Top Mount PTZ Camera Platform
