Stylish Bolt-On Mount for Pendant Mount PTZ Cameras

Fly-Out PTZ Mount (or Panoramic Camera Mount)

sp ptmrfo fly out - Fly-Out PTZ Camera Mount

Strong Poles has designed a mount for a PTZ Camera (1-1/2” NPT Threaded pipe) or to fit our Panoramic Camera Mounting Box, that is designed to hold any camera with a screw-on attachment. The size of the threads are 1-1/2” NPT, but a reducer can be used to fit other sizes as well as a Female Coupler.

This stylish “Fly-Out” mount is designed to get the mounting arm a good distance away from the camera so that it does not block a large portion of the surrounding view.

The supplied 1-1/2” NPT pipe fits many common PTZ Cameras, Dome Cameras and Panoramic Cameras. It can also be easily adapted for others.

This Fly-Out Mount can be combined with our Panoramic Camera Mounting box to provide a mount and drop-down service door for virtually any 360 or 180 degree Panoramic Camera.

Can Be Used With Many of Our Other Attachments.

This Fly-Out mount gets the camera away from the pole or mounting origin, such as a Wall Mount (see Wall Mount Adapter), or even out over a Parapet wall using our new “Surface Mount Short Poles (15” and 30” tall).

The Fly-Out can be pole mounted to provide up to 4 camera attachments. It can also be used on our new “Corner Mount” with up to 3 camera attachments.

The Fly-Out has many more uses than the FlyOver mount, and is a stylish way to mount PTZ, Dome or Panoramic cameras.

Click any image to enlarge

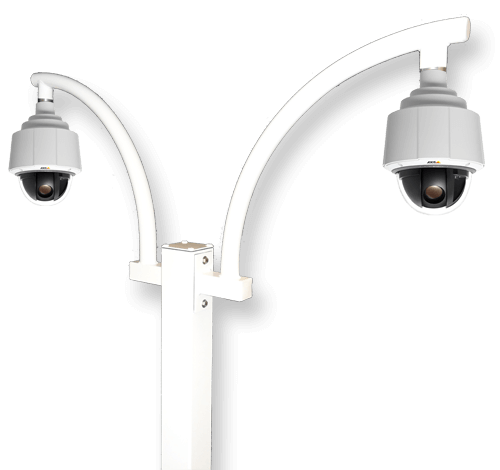

Camera Pole Mounted Fly-outs

fly outs on pole lg - Fly-Out PTZ Camera Mount

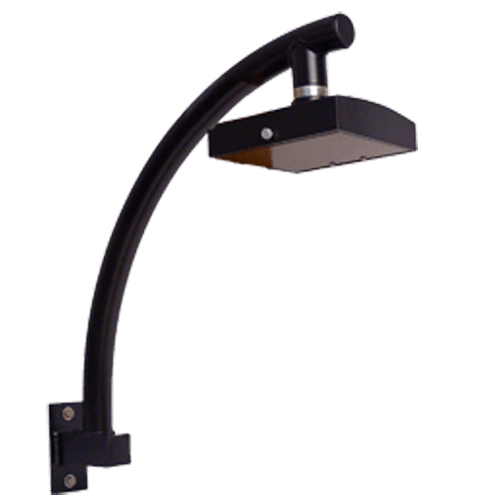

“Fly-Out” with Optional Panoramic Mount

fly out with pano moun lgt - Fly-Out PTZ Camera Mount

Click for Panoramic Mount Info

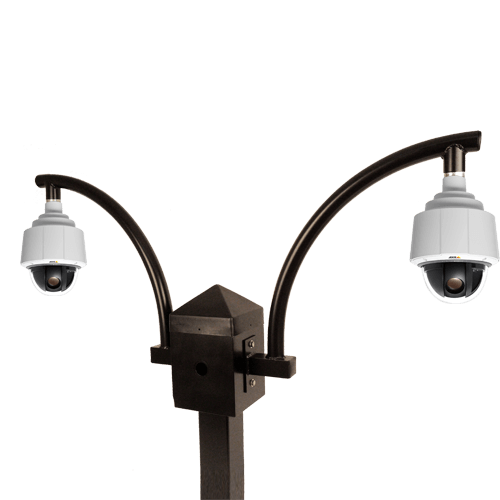

Dual Fly-Outs mounted to the 8×10 Platform

doublefly out lg - Fly-Out PTZ Camera Mount

Click for 8×10 Mounting Platform Info

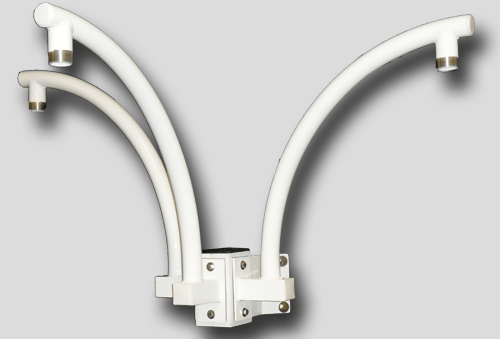

Corner Mount with Fly-outs

fly outs corner mount lg - Fly-Out PTZ Camera Mount

Click for Corner Mount Info

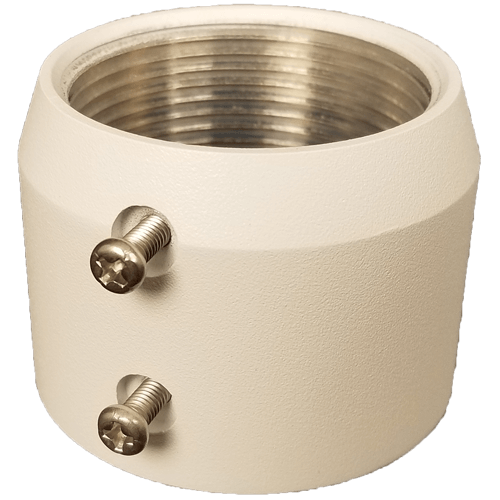

1-1/2″ Female NPT Coupler Included

Part# SP-1.5Coupler

sp 1.5Coupler larget 2 - Fly-Out PTZ Camera Mount

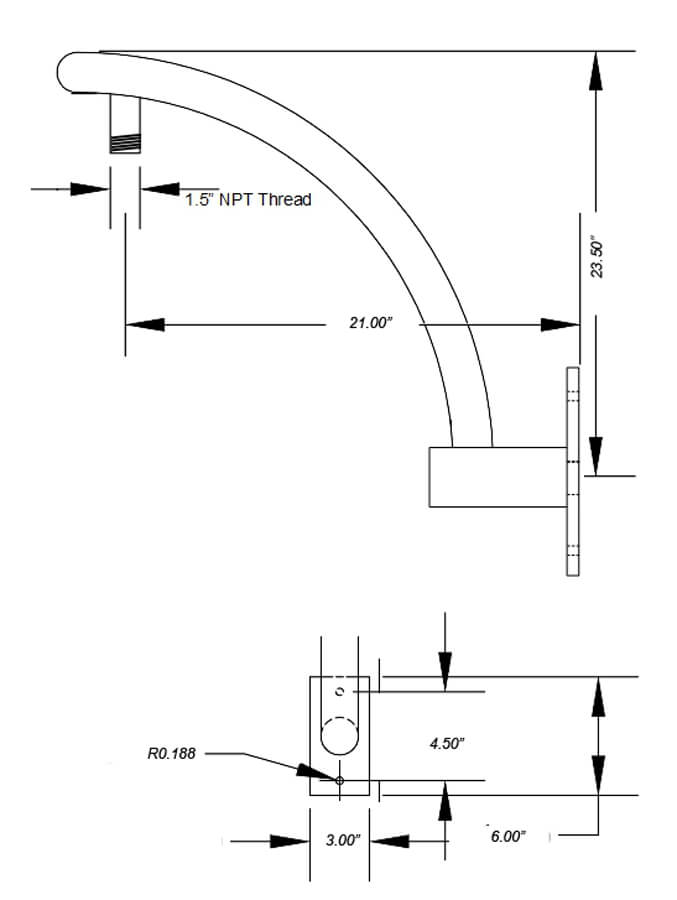

Fly-Out Mount Dimensions

Click Image for Larger View
flyout deminsons lg 1 602x800 - Fly-Out PTZ Camera Mount

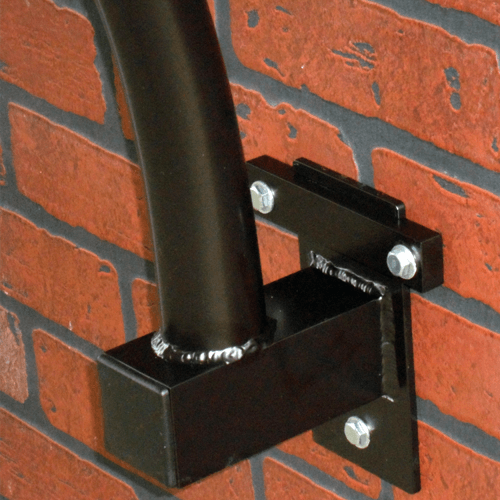

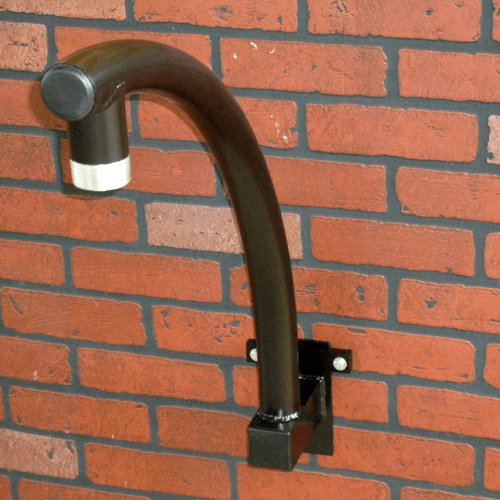

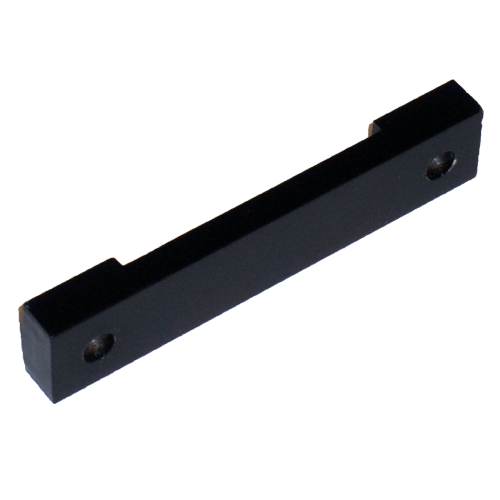

Optional “Fly-Out” Wall Mount Adaptor

The Wall Mount Adaptor allows for the use of power tools to fasten to the substrait surface where using the orginal mounting hole would require time consuming hand tools.
