8×10 Pole Top Platform

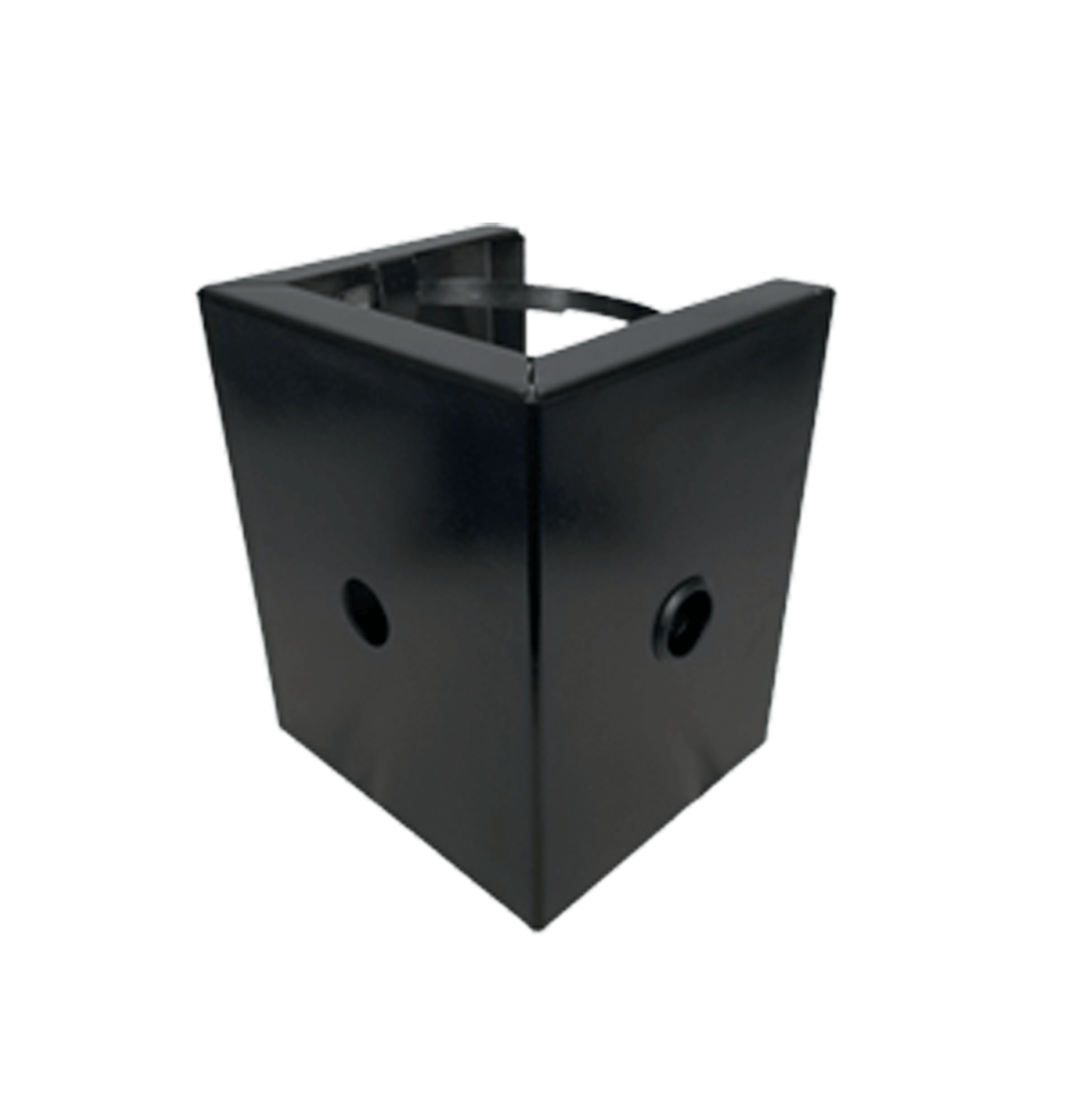

Wraparound Mounting Platform
Fence-Guard Camera Mount

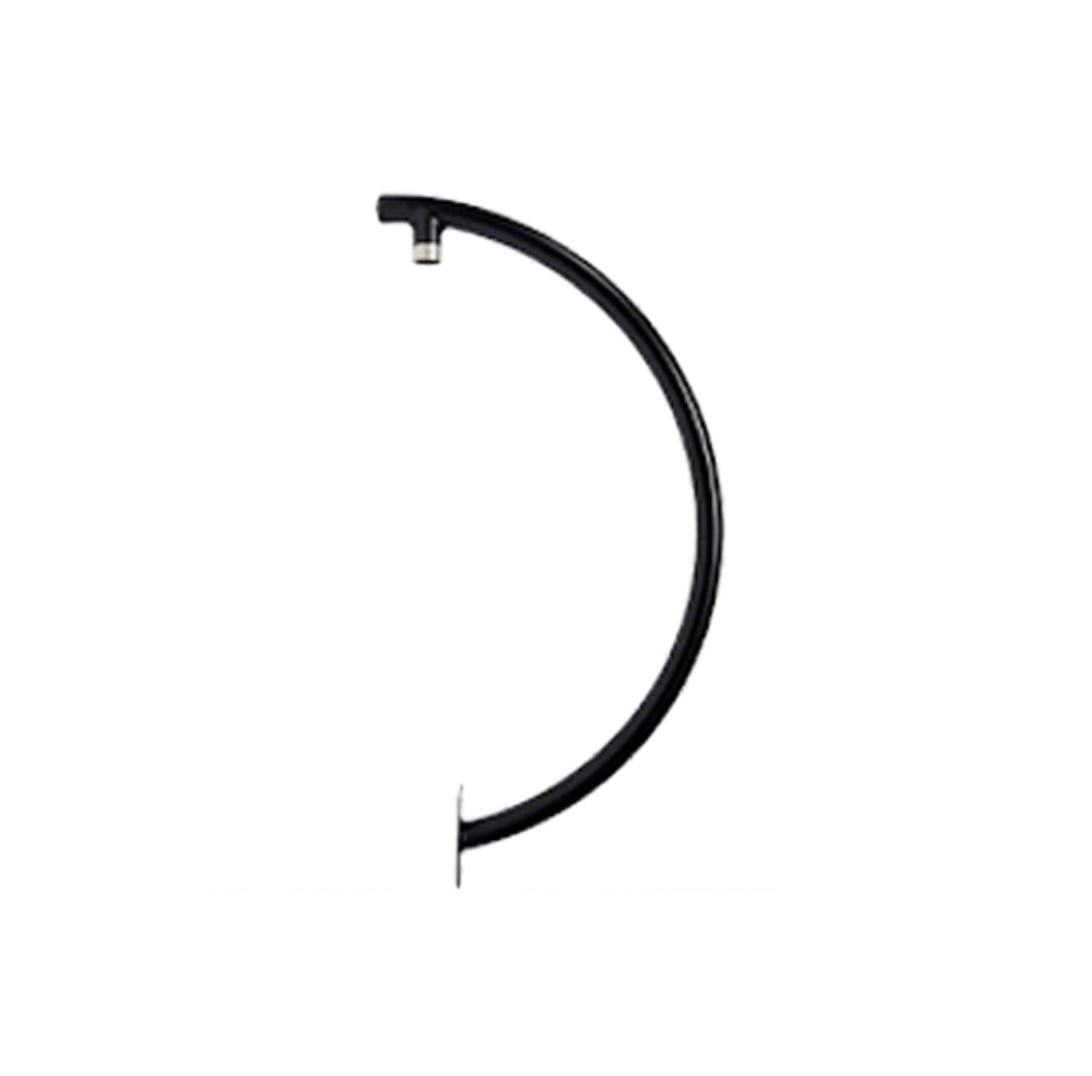

Reacher 5′ PTZ / Pano Mount

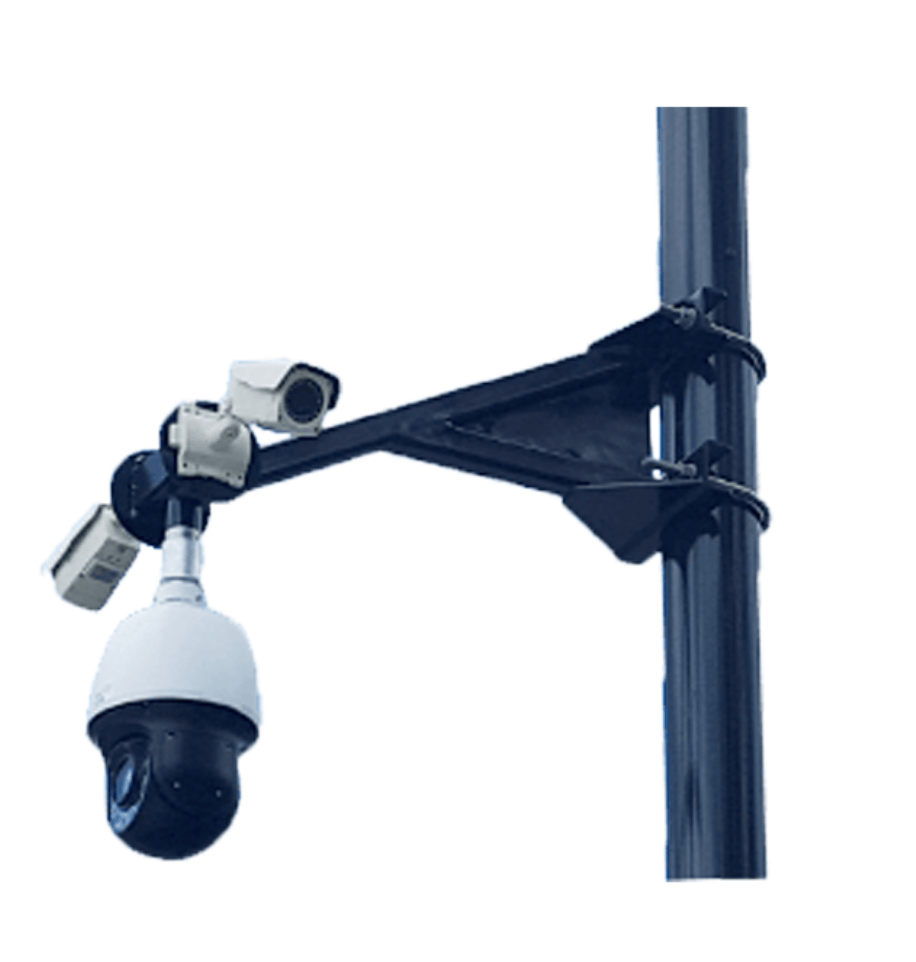

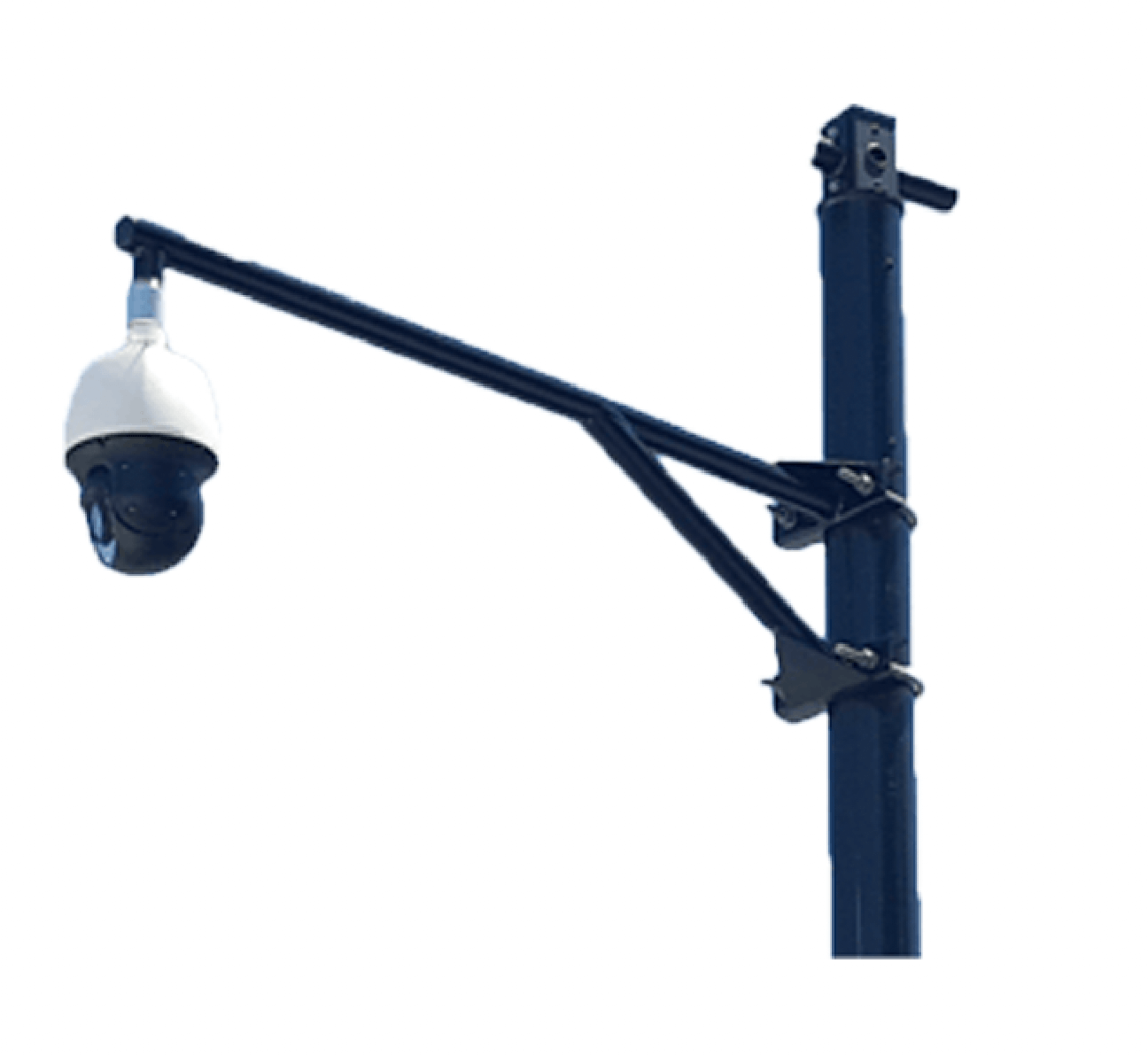

Fly-Out PTZ Mount

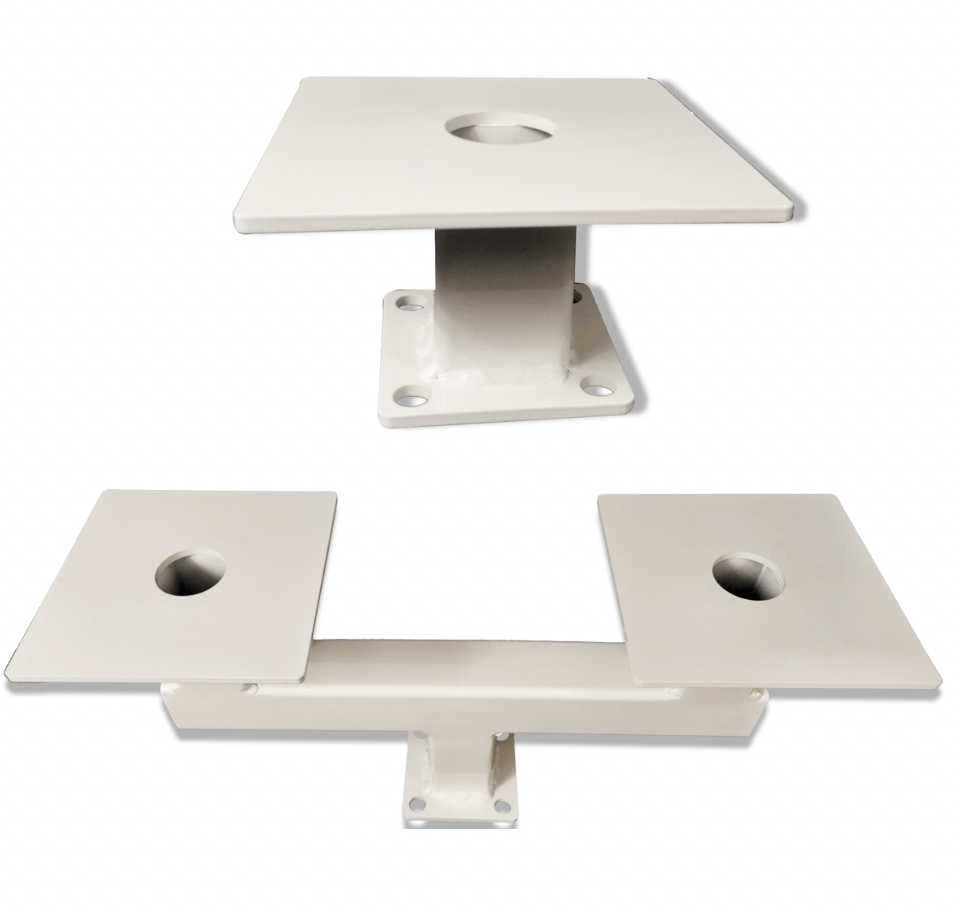

Fly-Out / Fly-Over Pedestal
8″ Square Pedestal
6×6 Junction Box
Top Mount PTZ Platform
A wide variety of top-mounted & Pole mounted Expansion Modules can be ordered:

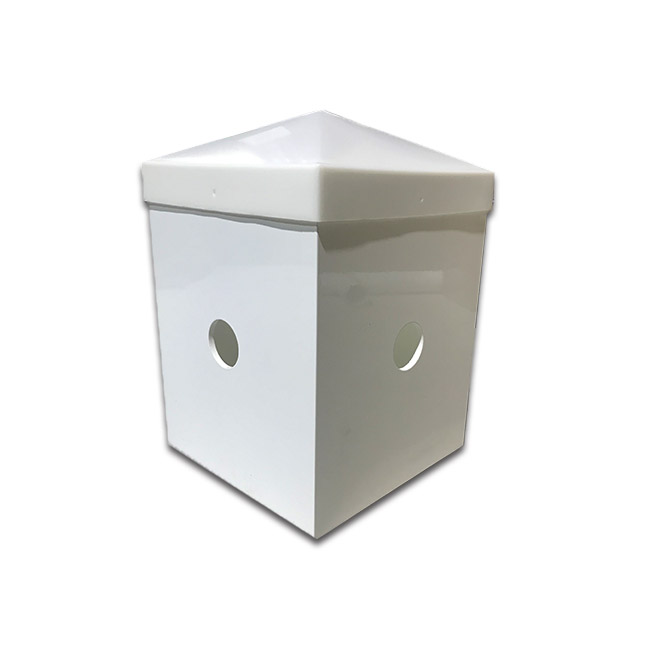

- 8 X 10 Mounting Platform – 8” x 8” x 10” tall box with weatherproof pyramid top – mounts on top of the pole and will fit up to 4 Cameras or Devices using their existing Wall Mounts – Any Brand – Any Type. Commonly used when mounting one or more PTZ or other cameras, power supply boxes or devices that need a wide mounting face. One Face of this platform is designed for attaching Equipment Cabinets, Power Supply Boxes or can also be used as an additional mounting face.
- Includes three built-in 1” conduit fitting knockout holes for installing glands or LiquidTite fittings – simply remove the hole cover and install your 1” fitting
- Includes 4 pre-threaded 3/4” conduit fitting connections. Simply remove the plugs and thread in any 3/4” conduit or LiquidTite fitting.

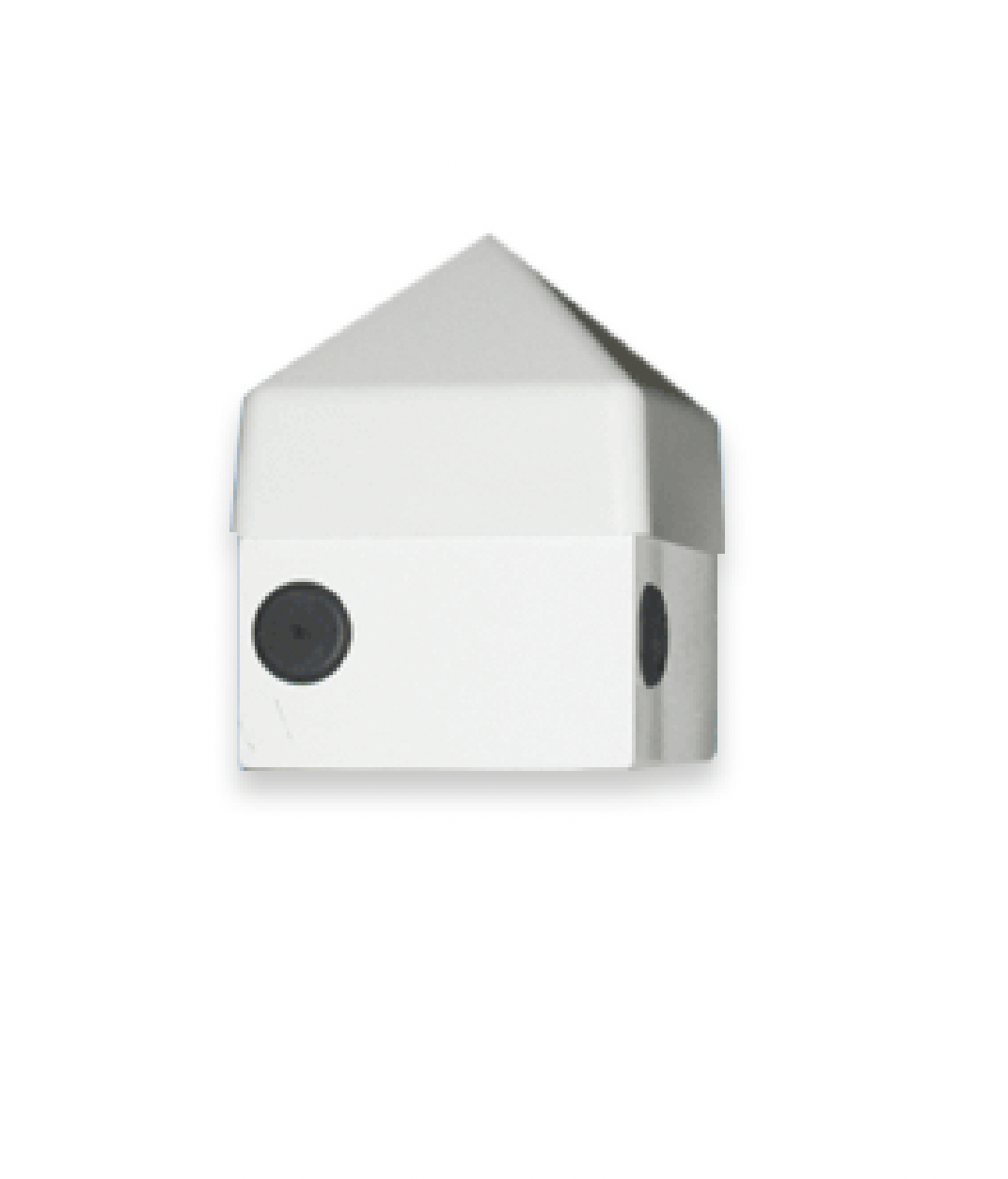

- 6 X 6 Junction Box Platform – 6” x 6” x 4” tall junction box with weatherproof pyramid top – commonly used for making connections, attaching conduit or LiquidTite fittings, and also to mount smaller cameras, illuminators and other devices on the outside faces. The space inside can be used for connections, POE Injectors or other small devices.
- Includes four built-in 3/4” conduit fitting knockout holes for installing glands or LiquidTite fittings – simply remove the hole cover and install your 3/4” fitting
- Can be ordered with optional 30” Wifi Antenna Mount Mast – allows overhead mounting of one or more antennas of any type – Panel, Yagi, etc.

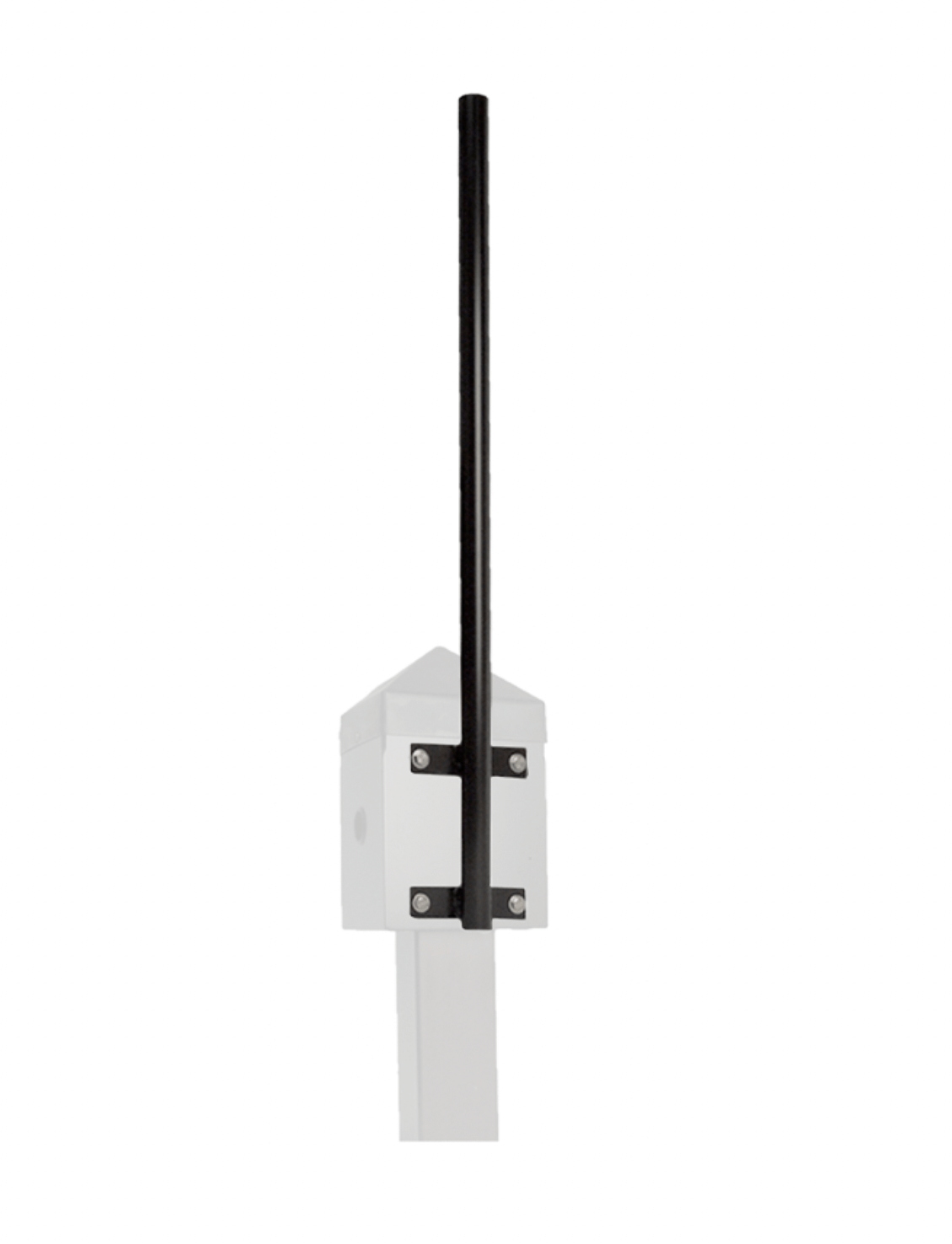

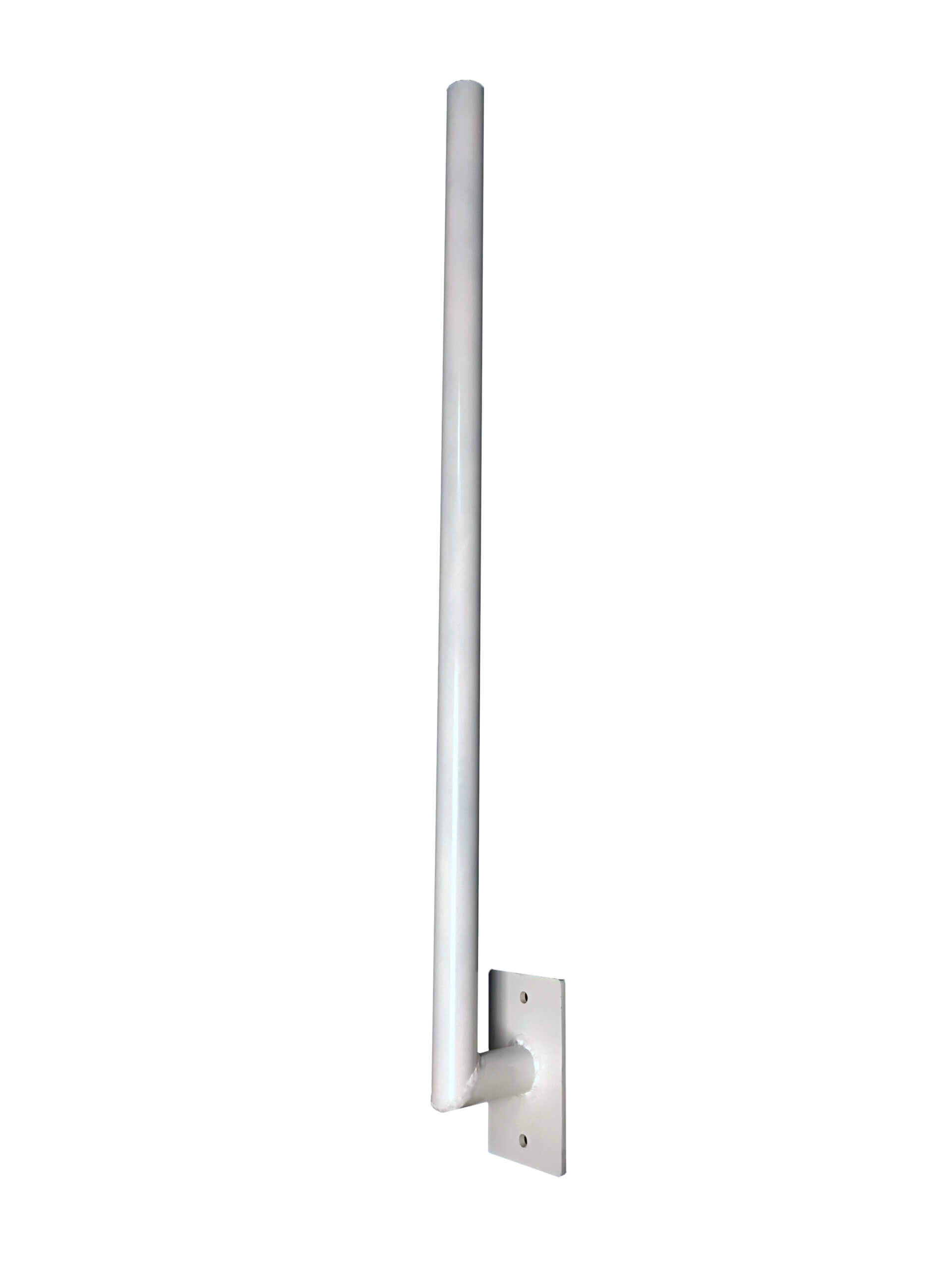

- Top-Mounted Wifi Antenna Mount Mast – allows overhead mounting of one or more antennas of any type – Panel, Yagi, etc.

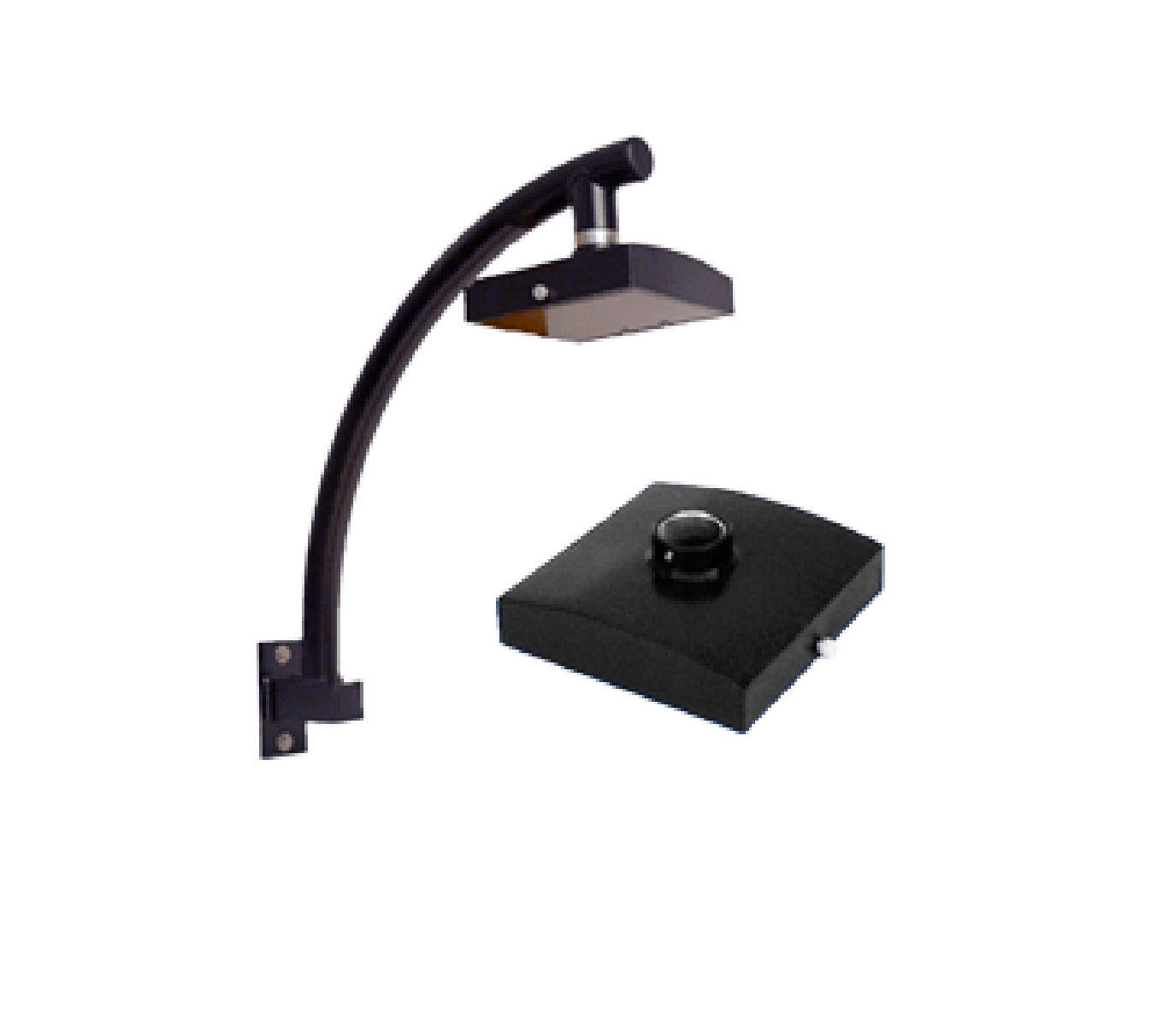

- Universal Top-Mounted 180º or 360º degree Panoramic Camera mount – any Brand. Is commonly used with theFly-Over Mount.

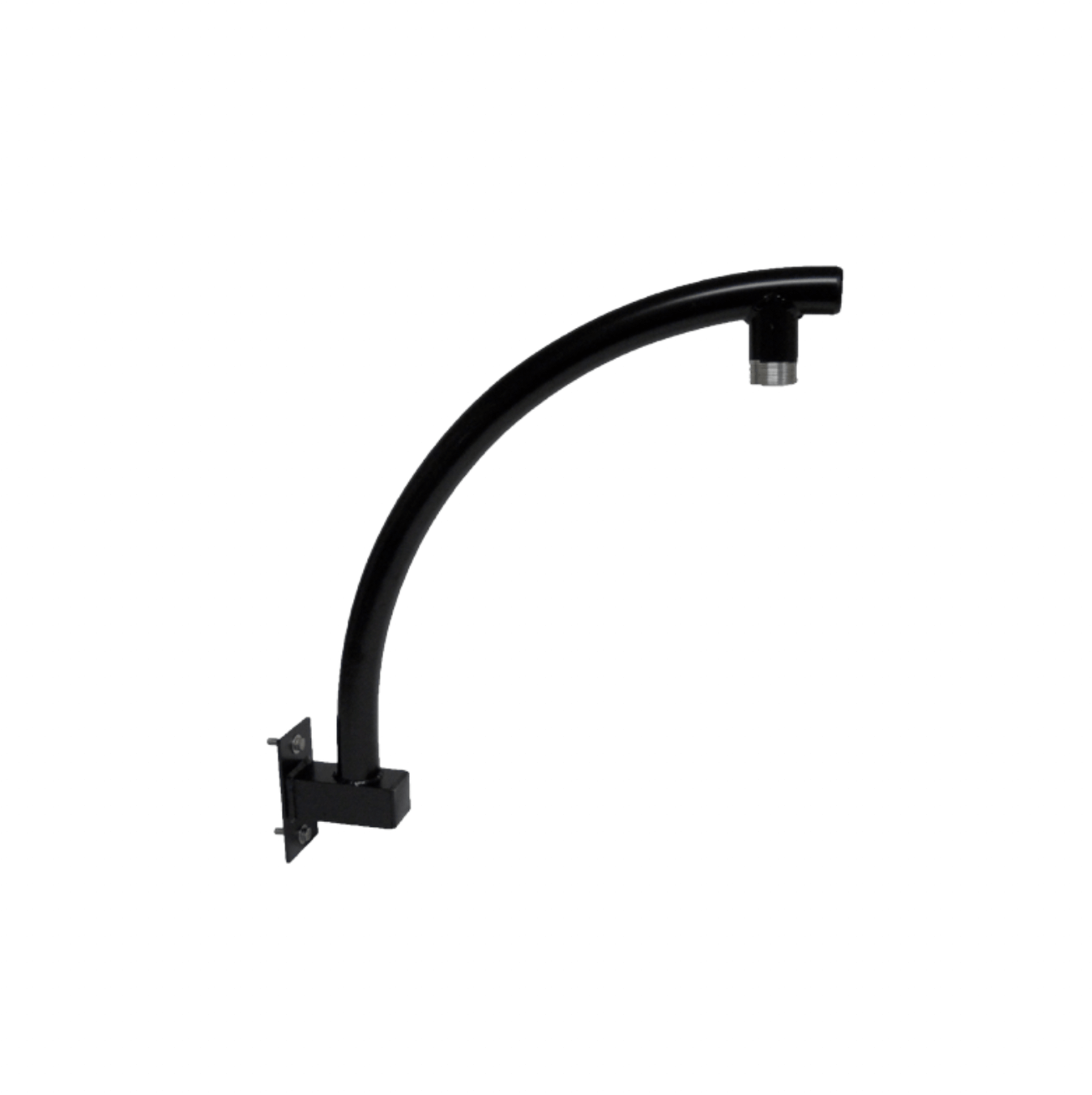

- Fly-Over Mount provides a 1-1/2” NPT threaded pendant mount for PTZ Cameras or the Panoramic Camera Mount.
More mounts and accessories coming soon!
