Direct Burial Camera Pole Installation

Camera Pole Installation

Direct Burial Camera Pole

Strong Poles has the advantage over other poles because our exclusive Aluminum Direct Burial Camera Pole design makes them the perfect option for direct buried applications. Utility poles like composite or wood poles are not designed for cameras or other devices. The most common problem is the vibration of the poles; with Strong Poles Aluminum Direct Burial Camera Poles, there is no movement. direct buriable camera poles

With a record of successful installations throughout the country, Strong Poles Aluminum Direct Buried Poles provide industry professionals with significant overall job savings.

Strong Poles Aluminum Direct Buried Poles are the perfect solution to the high maintenance alternative of composite poles. Utilities, Developers and Contractors can benefit from the savings associated with the highest quality, longest-lasting, and lowest maintenance.

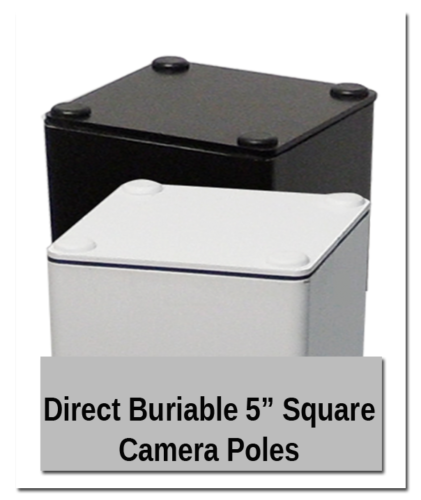

The 5″ square Aluminum Direct Burial Camera Poles allow camera mounting directly to the pole and prevent twisting once installed.

Direct buried alternative for residential applications.

  • Ease of installation.
  • Eliminates the need for foundations, requiring no Civil Engineer and no PE stamp, resulting in cost savings of $300 – $1000.
  • Eliminates the need for bolt circle templates and anchor bolts.
  • Speeds up the installation process while eliminating the additional freight charges of anchor bolts shipped in advance.
  • Eliminates the use of shims or double nuts for leveling.
  • Eradicates improper bolt projections that, in many instances, result in high and uneven base covers.
  • Eliminates the need, time, and expense to grout.
  • Eliminates the possibility of foundation and anchor bolt replacement in the event of a knockdown.
  • Allows aluminum to have cost-competitive with composite and concrete while providing a more appealing and aesthetic appearance.
  • Eliminates the possibility of improper pouring/setting of foundation.
  • Allows simple future retrofits by removing the need to match an existing bolt circle.



Direct Burial Camera Pole Installation



  1. Make The Hole: Hole should be round with smooth vertical sides consisting of undisturbed soil for best compaction and stability of poles. direct burry camera pole installation
    The diameter of the holes should be about two times the diameter of the pole at its base. Holes should be hand-dug or augur.
    For general burial depth, consult the chart below
  2. Overall Pole Length Burial Depth = 12′, 15′, 20′ poles require a 4′ deep hole  //25’, 30′ poles require a 5′ deep hole
  3. Wire the Pole: Complete wiring utilizing approved methods.
  4. Install the Pole: In many cases, aluminum poles can be manually lifted into place and inserted into the hole.
  5. Level the Pole: Use a plumb bob or level to align the pole.
  6. Back-fill the Hole: Concrete is the preferred back-fill material, brace pole until concrete sets.
























Warranty

The Aluminum Direct Burial Camera Pole comes with our exclusive 20 Year Structural Integrity Warranty (3 Year finish and material warranty – all warranties are limited to replacement and/or repair). MADE IN THE USA.

Share your Pictures

We have given you a few ideas of what you can do with the Aluminum Direct Burial Camera Poles; now, we would love to see what creative ways you have installed or added to our products and how you have used them. We have customers that have used our products in ways we have not thought of yet. It is nice to be able to get ideas from our customers.

Shipping

The AluminumDirect Burial Camera Pole 12ft, 15ft, 20ft, and 25ft are ship via freight line. With package shipping weights ranging from LBS to LBS. The AluminumDirect Burial Camera Pole 30ft are ship via Hot Shot. With a package shipping weight of LBS. Would you please let your Sales Engineer know of any particular instructions we need to add for shipping to your location? We are not limited to shipping only with freight lines; you may have your order Hot Shot when ordering for a big installation job. We can also ship outside of the USA. Contact us for shipping rates.

Code Compliance

When installing the AluminumDirect Burial Camera Pole, check your local code compliance officer for the correct installation guidelines and any permits you may need. Checking with the code compliance officer will save you time and money; your customer wants the job done right the first time.
