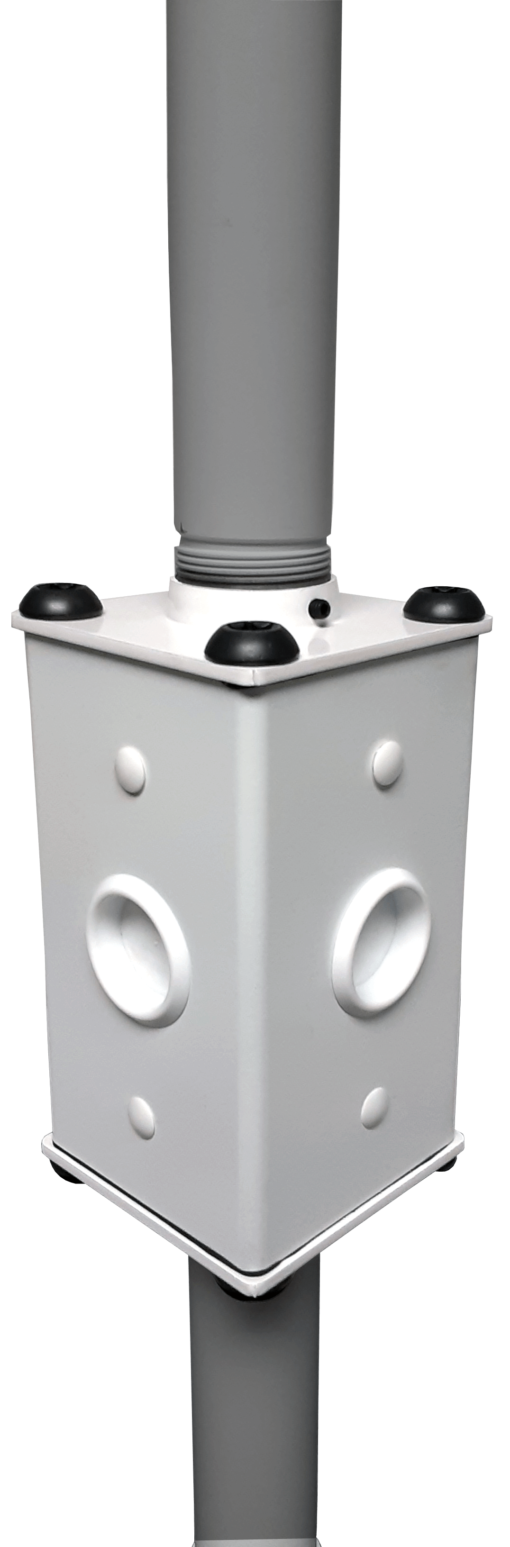

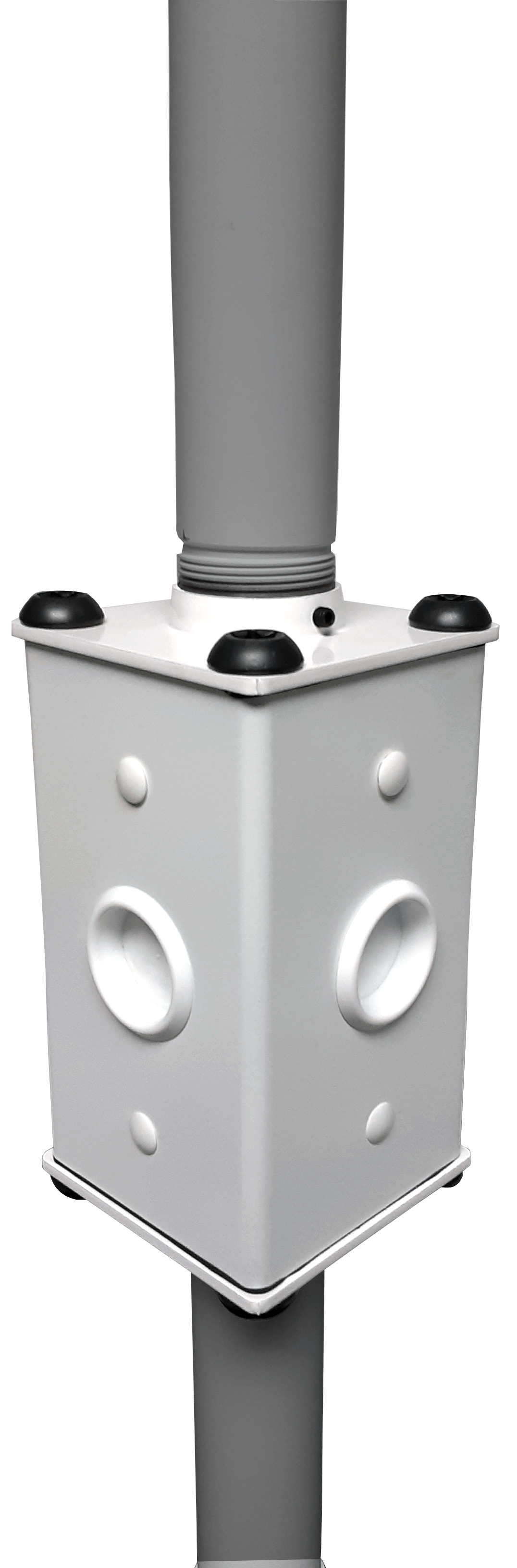

M.A.P.

Modular Accessory Platform

Choose from an ever-expanding selection of Accessories to mount on the MAP

The Top Plate is always the same:  a 1-1/2” Threaded Connector with set screws ready to attach to any Pipe Section – either Inline or at the bottom of a string.

Choice of 2 Bottom Plates:

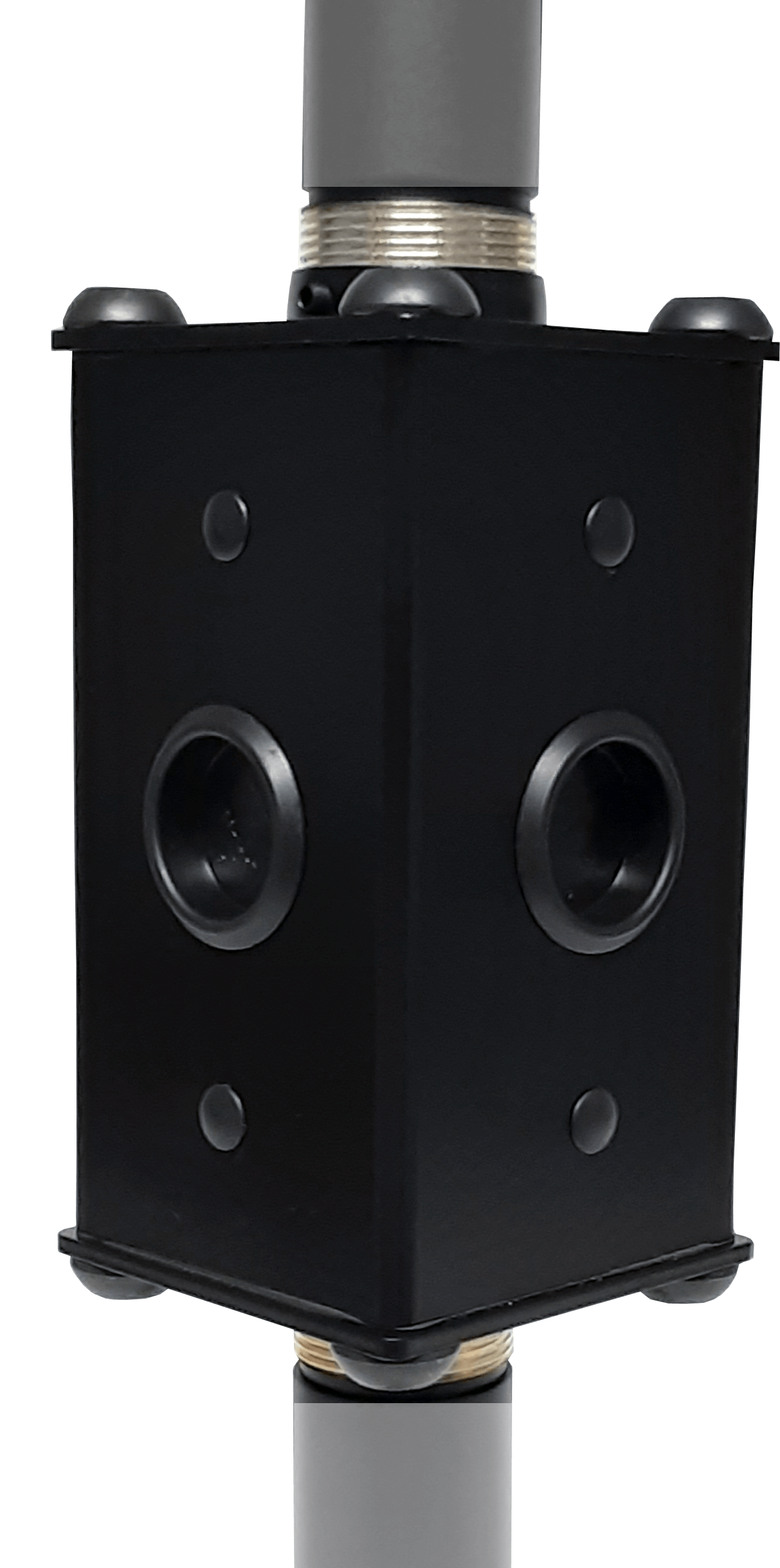

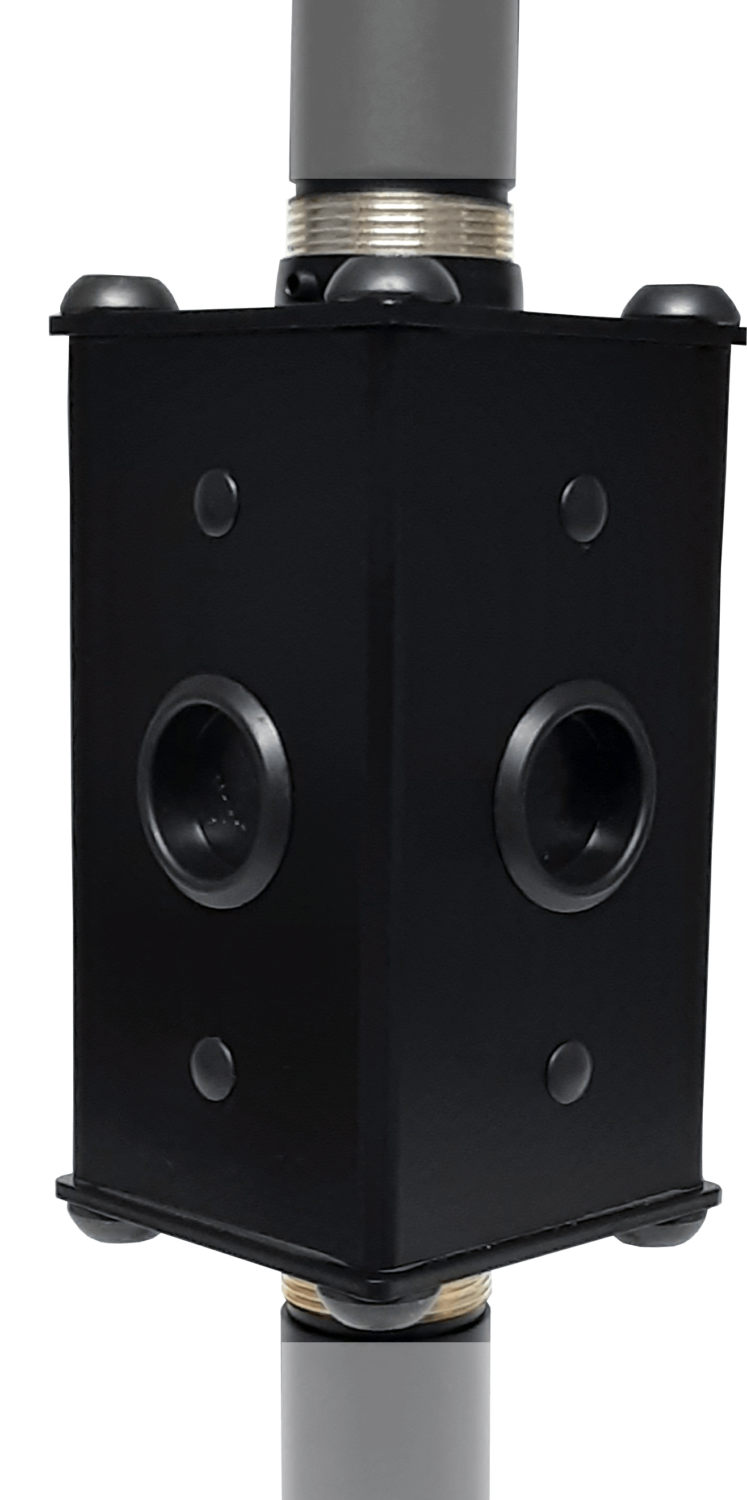

• 1-1/2” Threaded Connector with Set Screws (ready to add additional sections below it)

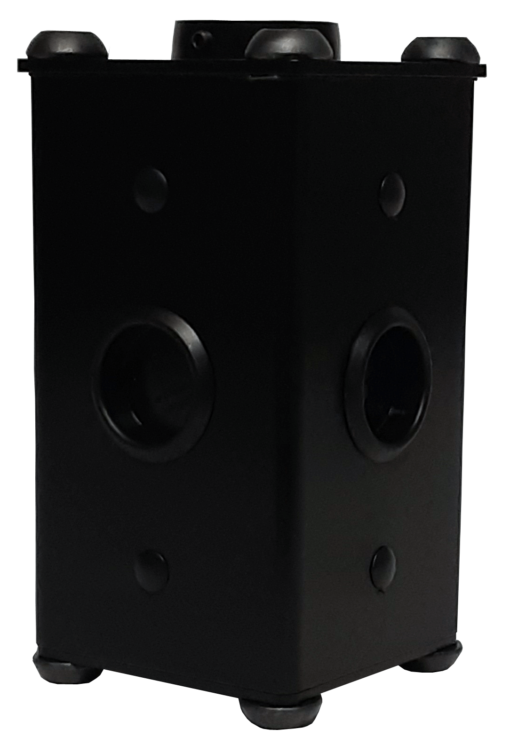

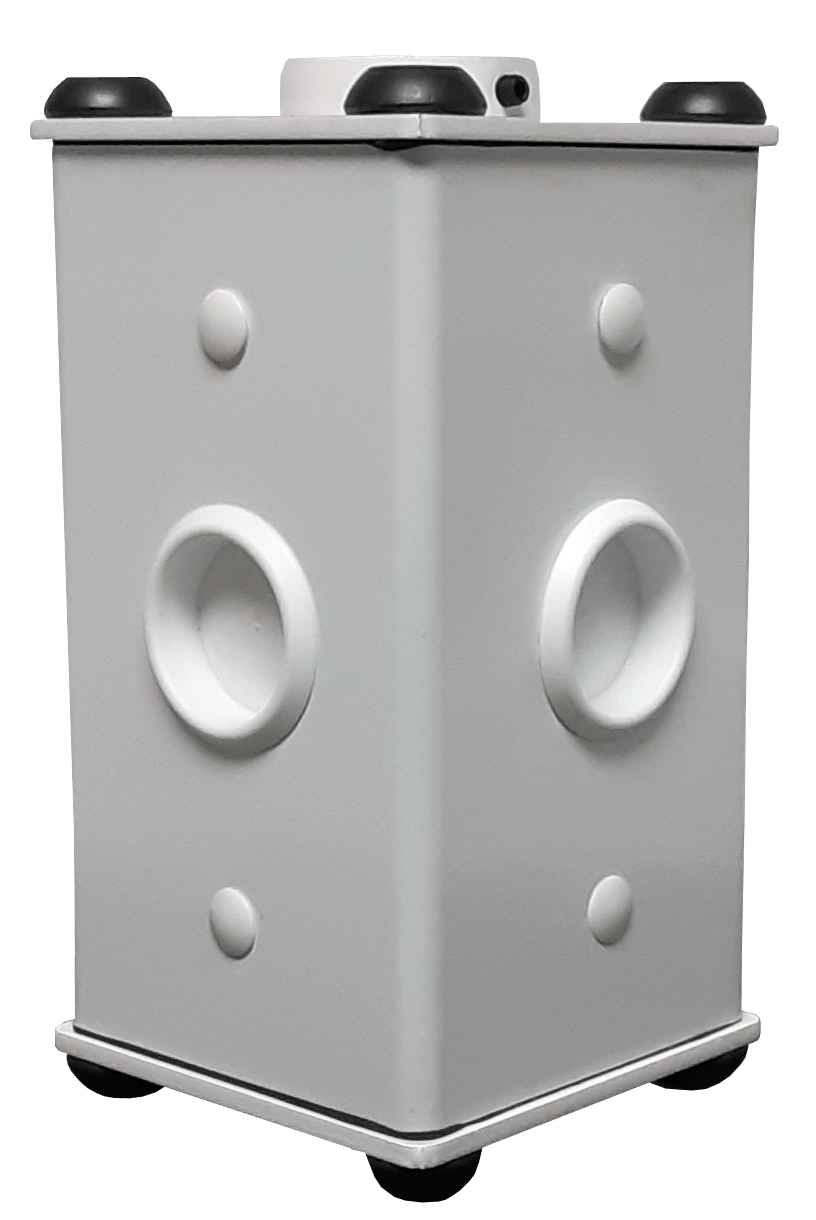

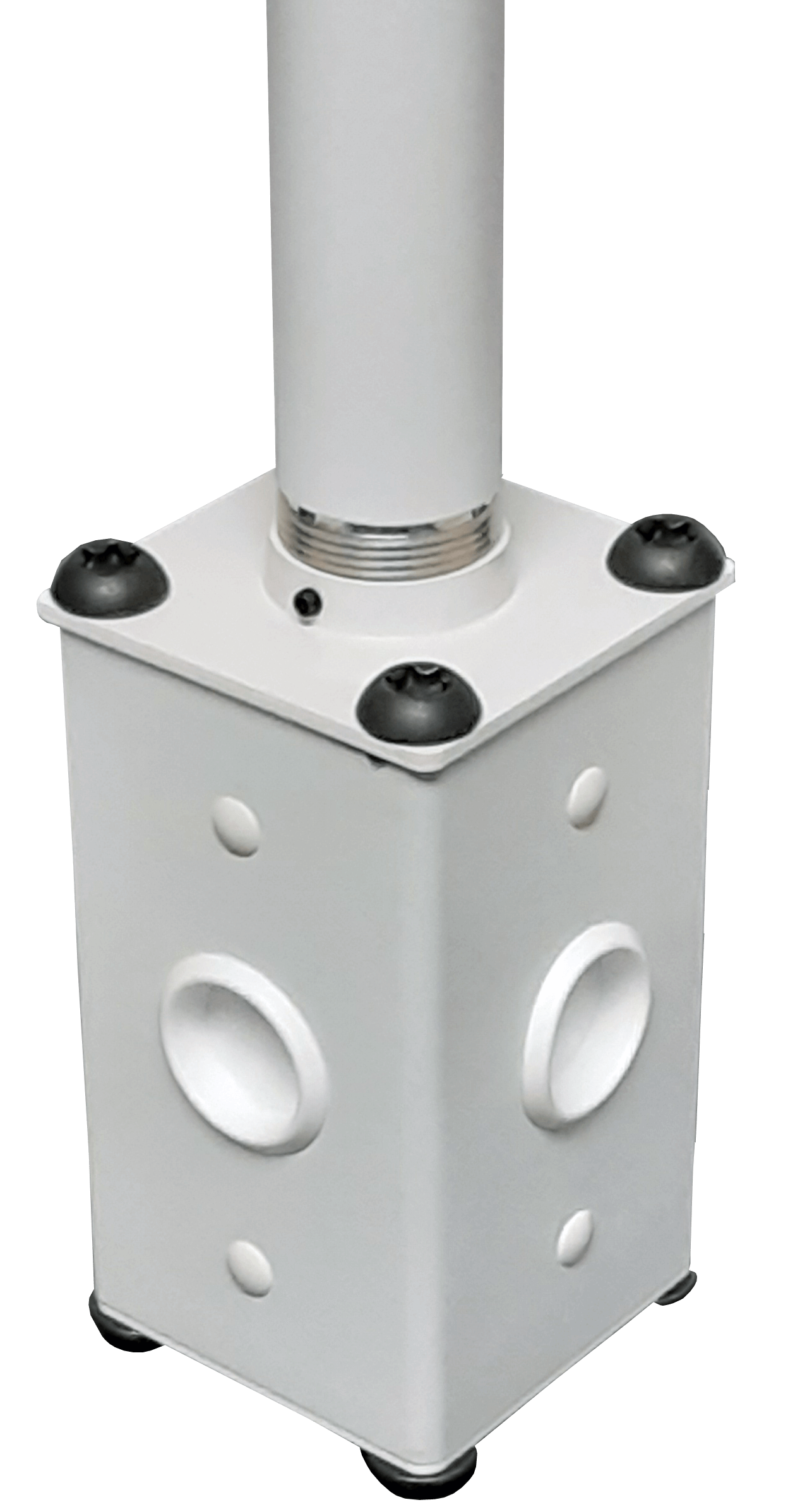

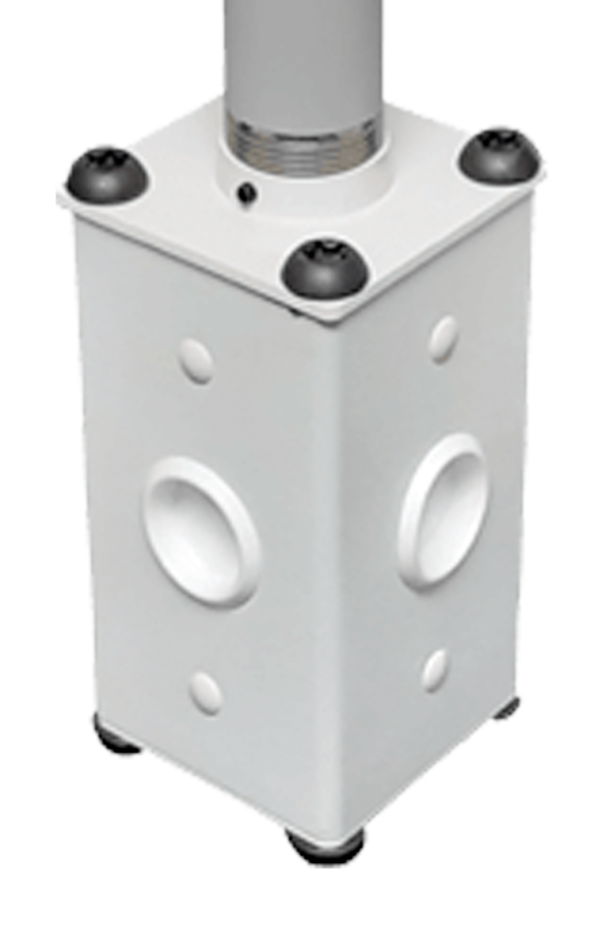

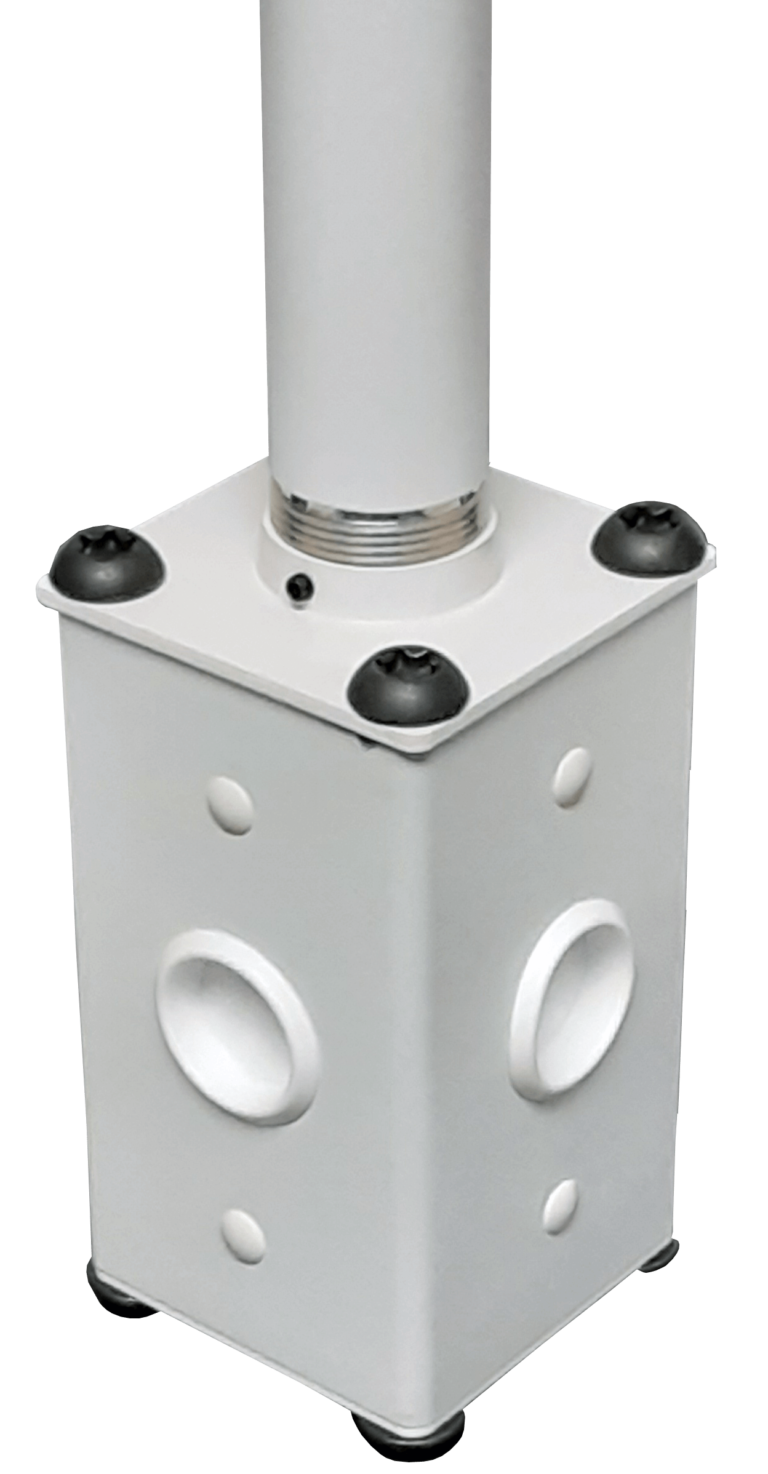

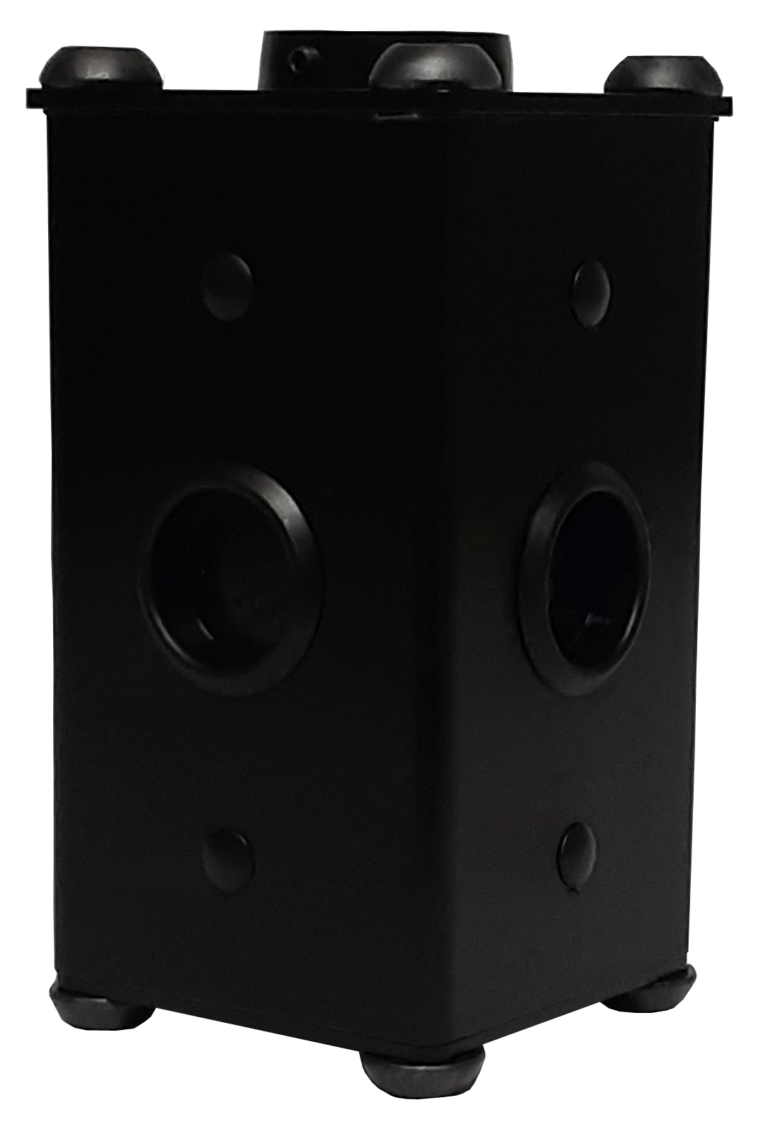

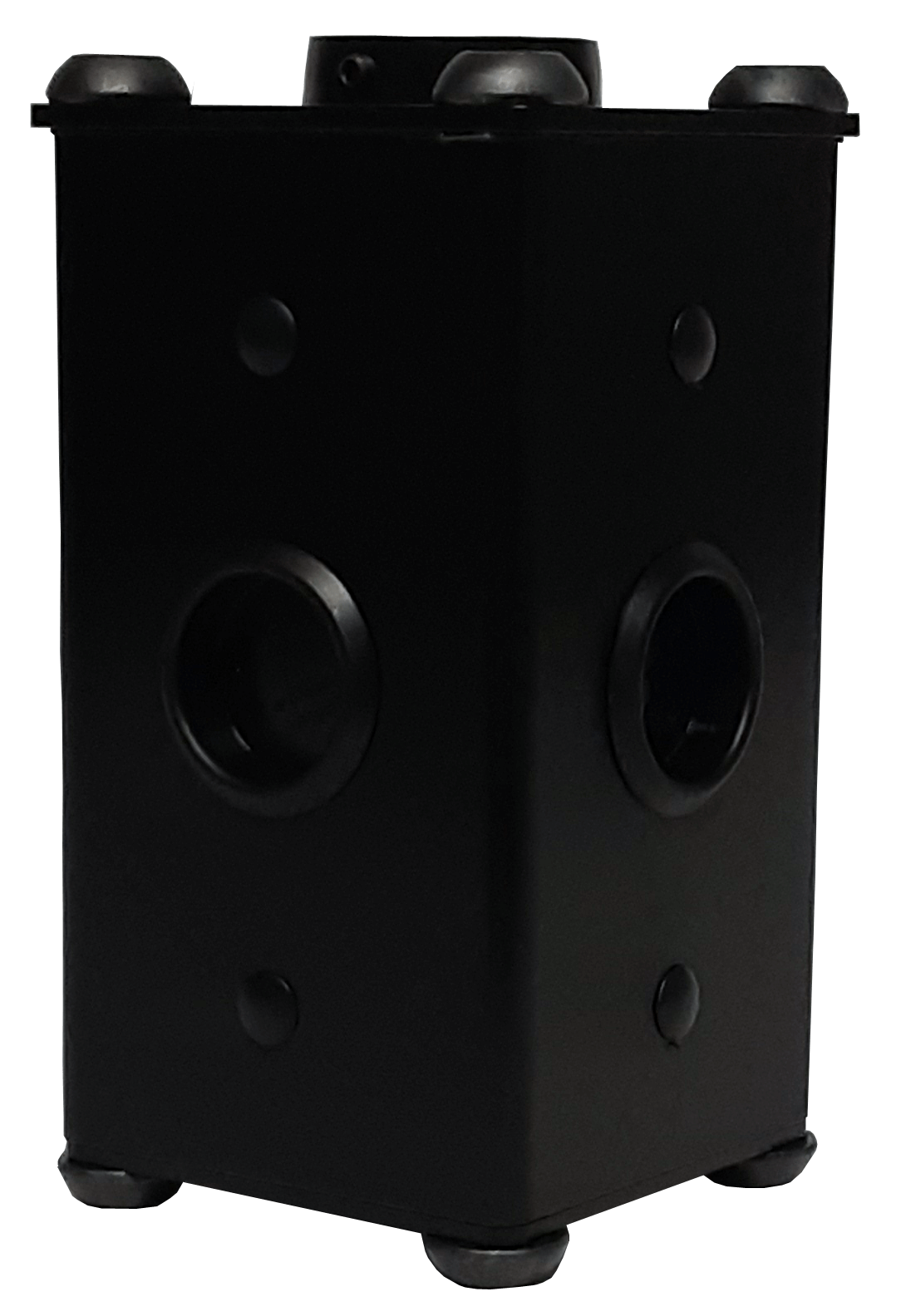

• Blank Plate for “End-of-Line” use

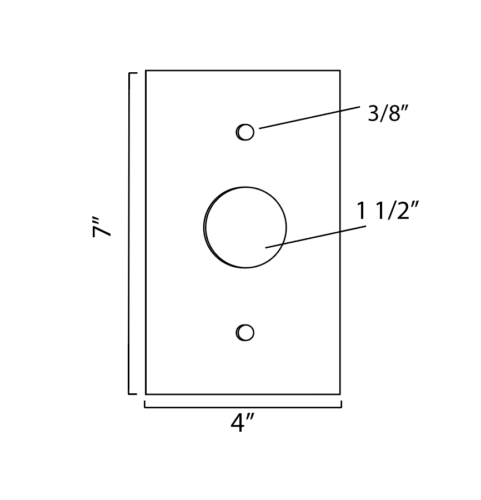

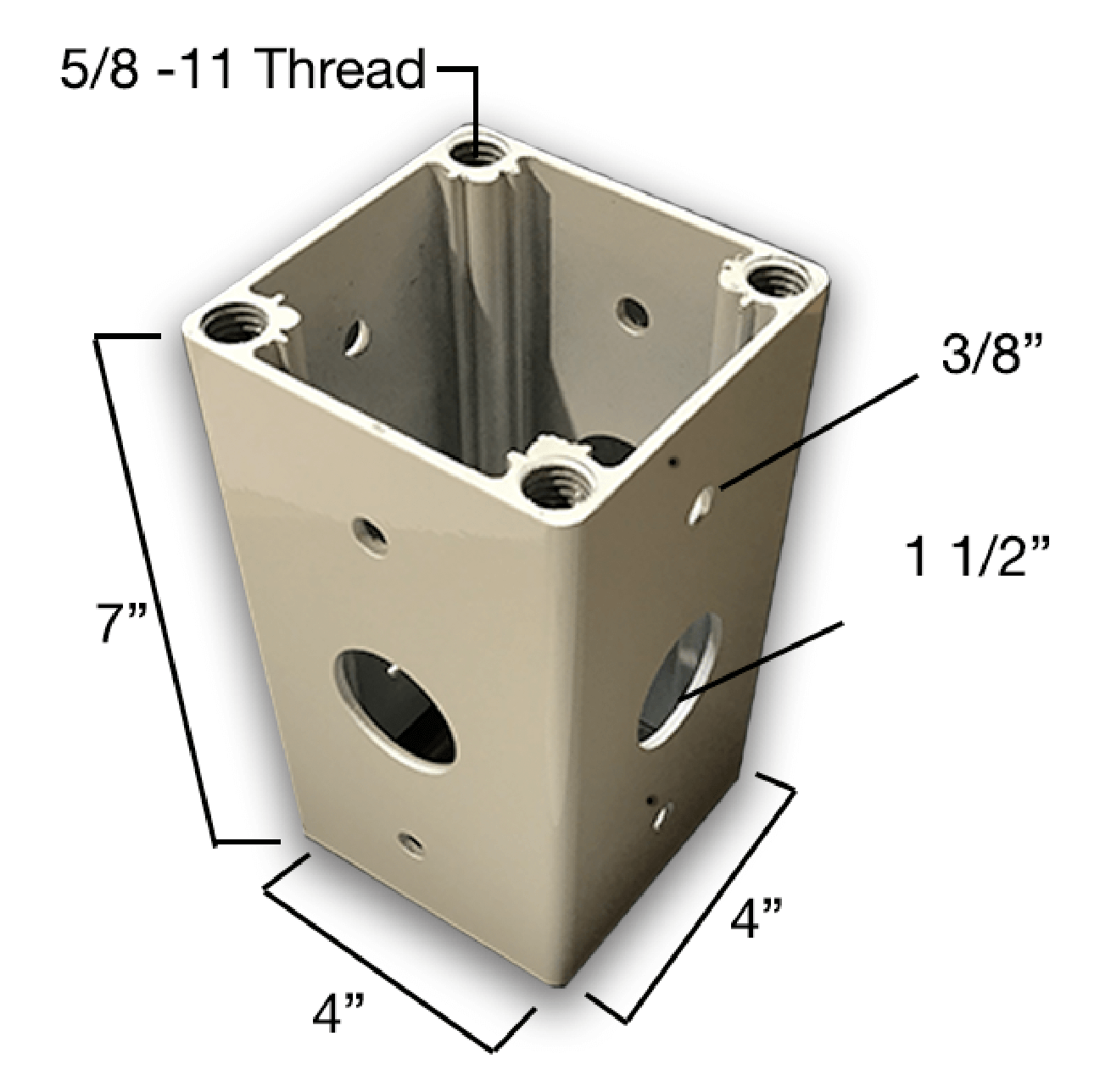

Dimensions:

4″x4″x7″ – Main body
1 1/2″ – Center hole on each side
3/8″ – Mounting bolt holes on each side
5/8-11 – Threaded Corners

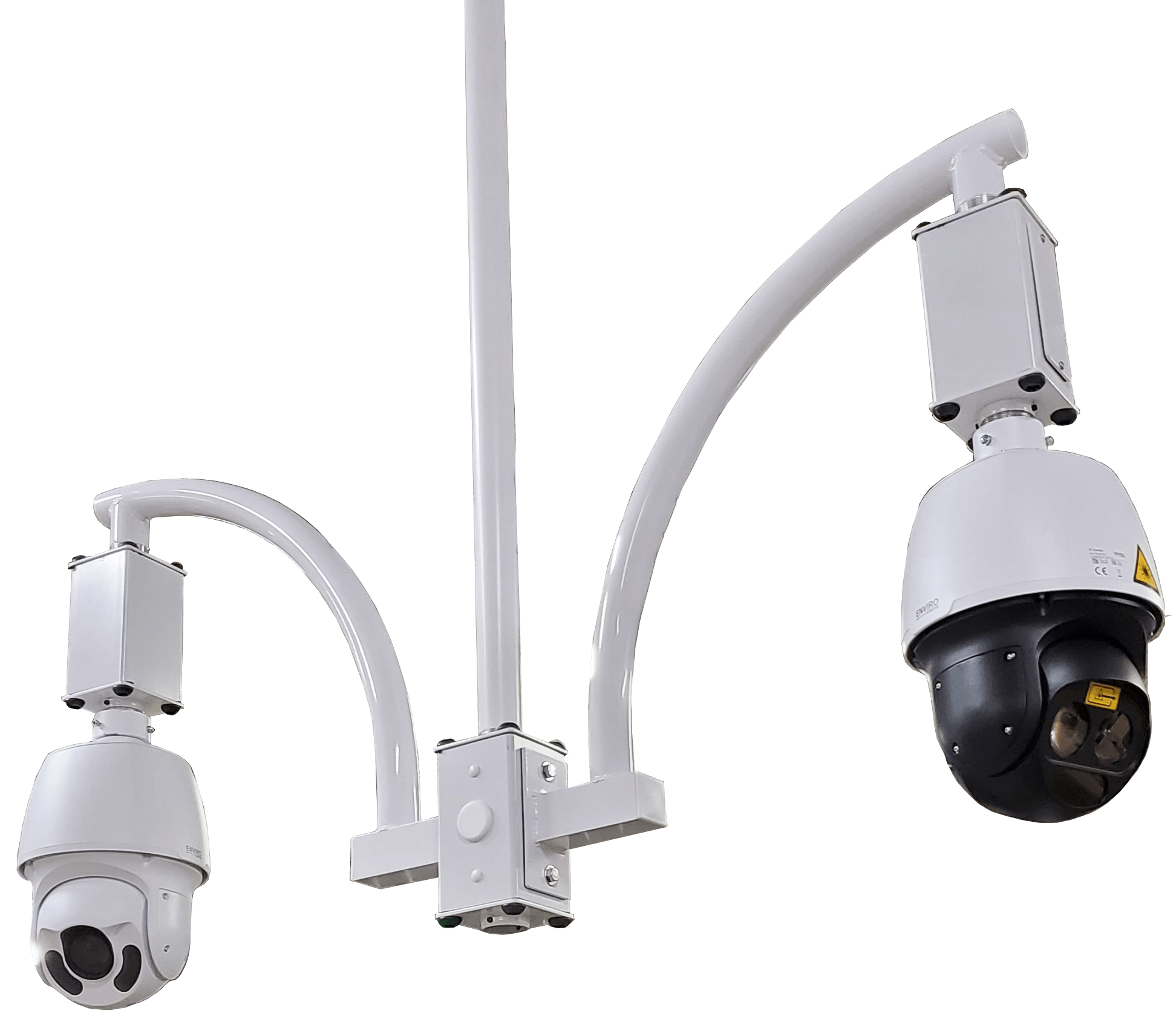

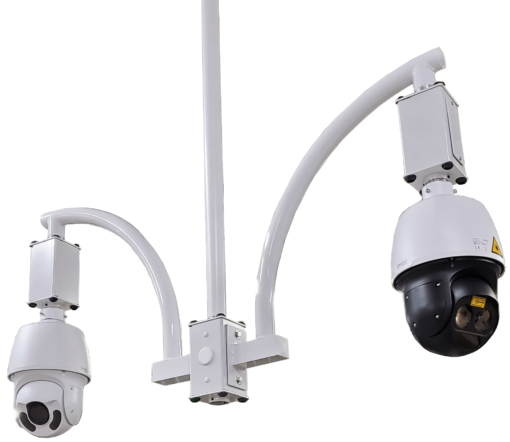

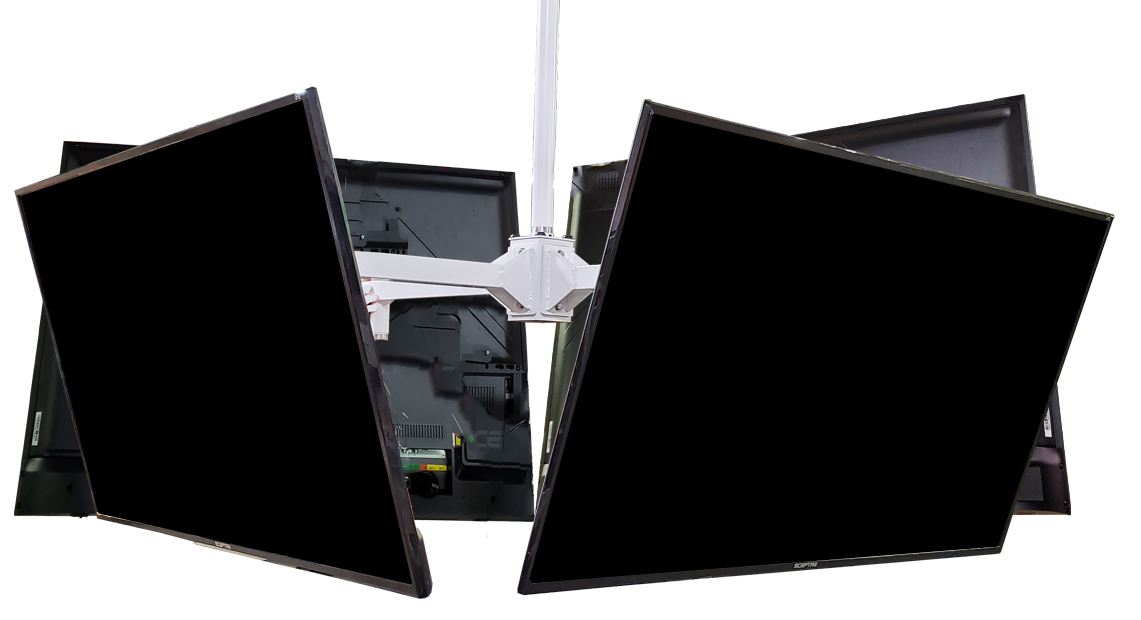

These Modular Accessory Platform are the Mounting Platform for many of our accessory pieces, which include: 2 Foot Arms (which can hold PTZ’s, TV’s and many other devices), Fly-outs, Vertical or Horizontal Lighting Tenons for hanging lights, the Side Camera Mount (for single Bullets, Domes and Panoramics), and even more to come.  There are dozens of combinations.  Let us know how you use it. (we will pay you for your pictures with a $25 Discount on your next purchase).

These ultra strong platforms have incredible strength and can hold a hundred pounds from each mounting point, and a hundred pounds inline below it (be careful not to exceed the total limit of your Top Attachment holding the entire weight of each component plus your equipment).

Each threaded Pipe Connection has 2 Set Screws that must be locked after tightening the pipe and positioning it.  This keeps any threaded connections from loosening or coming apart from vibration or twisting that could occur, such as with PTZ Cameras changing directions rapidly.

Here are a few pictures to give you a jump start on ideas for how to use the MAP.
